Part Number # FD2G
SKU # 2226077
Image Disclaimers Message
Appleton FD2G Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FD2G |
| SKU #: | 2226077 |
| Capacity: | 45, 45 cu-in |
| Dimensions: | 6.31 in H x 4.63 in W x 4.75 in D |
| Finish: | Tri-Coated |
| Hub Size: | 1/2, 1/2 in |
| Hub Style: | Brazed Threaded |
| Number of Gangs: | 2 |
| Number of Outlets: | 27 |
| Type: | Type FD Blank Deep |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381334501 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.86 / Each
Quantity:

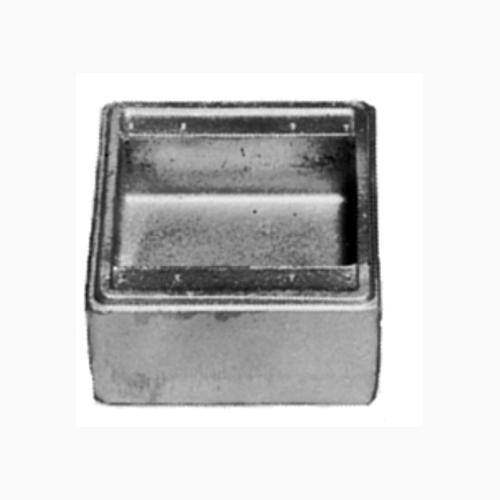

- Appleton UNILETS Cast Hub Device Box, Type FD Blank Deep, 27 Outlets, 2 Gangs, 1/2 in Hub, Brazed Threaded Hub, 45 cu-in, Malleable Iron, Tri-Coated, 6.31 in H x 4.63 in W x 4.75 in D
FD2G Application
For wiring devices such as switches and receptacles, serve as pull boxes for conductors, permit access to conductors for maintece, provide openings for making splicesFD2G Item Features
- Malleable iron device boxes and brazed hubs, malleable iron or steel covers, stainless steel cover screws
- Ideal for areas where boxes are subject to rough usage
- Corrosion-resistant for indoor or outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- Boxes take standard flush wiring devices exceeding 1-5/8 in D under fastening ears
- Ridge top construction provides positive fit between gasket, box and cover to seal out moisture
- For use with threaded rigid metal conduit and IMC and NEC listed for ordinary locations
- Without lugs
FD2G Standards
UL 514A|UL File No. E2527|NEMA FB-1|NEC CertifiedSKU #2226077Part Number #FD2GUNSPSC39121315UPC00781381334501
