Part Number # FDC1100A
SKU # 2165507
FDC1100A

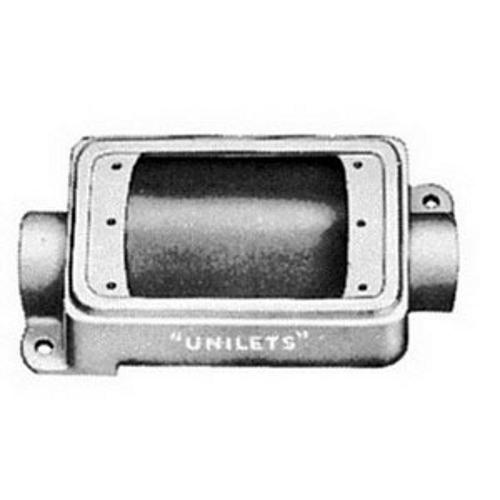

Appleton FDC1100A Device Box
Part Number # FDC1100A
SKU # 2165507
Appleton FDC1100A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FDC1100A |
| SKU #: | 2165507 |
| Cable Entry Size: | Knockout |
| Capacity: | 25, 25 cu-in |
| Dimensions: | 4.56 in H x 2.81 in W x 2.69 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 1, 1 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 1 |
| Number of Knockouts: | 2 |
| Number of Outlets: | 2 |
| Type: | Type FDC Deep Heavy Duty |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381455824 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FDC1100A Device Box
Brand: Appleton
Part Number: FDC1100A
Appleton UNILETS Device Box, Type FDC Deep Heavy Duty, 2 Outlets, 1 Gangs, 2 Knockouts, 1 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Aluminum, Epoxy Powder Coated, 4.56 in H x 2.81 in W x 2.69 in D
Additional Description: APLE-FDC1100A 1 UNILET TYPE FD 1-GANG
Catalog Description: UNILETS FDC Deep Depth 1-Gang Cast Device Box, Number Of Outlet: 2, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1 IN, Cable Entry: (2) 1 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2.69 IN, Finish: Epoxy Powder Coat, Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
FDC1100A Application
For use with threaded rigid/IMC conduitFDC1100A Includes
Internal Ground Screw and Mounting LugFDC1100A Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
FDC1100A Standards
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1SKU #2165507Part Number #FDC1100AUNSPSC39121315UPC00781381455824
Image provided may only be a representation of final product and may include optional equipment
