FDCC1100
Appleton FDCC1100
Part Number # FDCC1100
SKU # 2469879
Appleton FDCC1100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FDCC1100 |
| SKU #: | 2469879 |
| Dimensions: | 4.56 in H x 2.81 in W x 2.69 in D |
| Type: | Type FDCC Deep Heavy Duty |
| UNSPSC: | 39121315 |
| UPC: | 00781381336857 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FDCC1100
Brand: Appleton
Part Number: FDCC1100

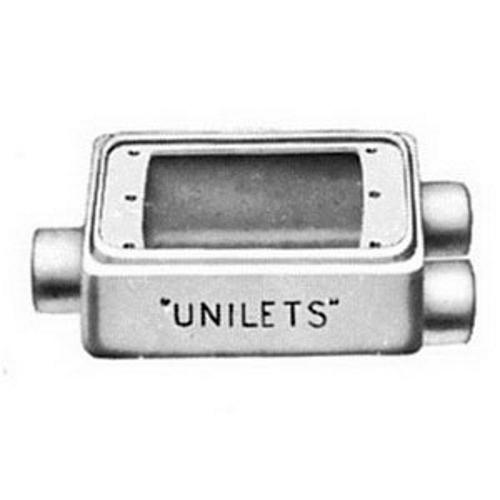

Appleton® UNILETS™ Device Box, Type FDCC Deep Heavy Duty, 3 Outlets, 1 Gangs, 3 Knockouts, 1 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2.69 in D
Additional Description: APLE-FDCC1100 THREADED UNILET 1 GANG
Catalog Description: UNILETS FDCC Deep Depth 1-Gang Cast Device Box, Number Of Outlet: 3, Material: Malleable Iron, Size: 1 IN, Cable Entry: (3) 1 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2.69 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
FDCC1100 Application
For use with threaded rigid/IMC conduitFDCC1100 Includes
Internal Ground Screw and Mounting LugFDCC1100 Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
FDCC1100 Standards
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1FDCC1100 Warranty
1 YearSKU #2469879Part Number #FDCC1100UNSPSC39121315UPC00781381336857
Image provided may only be a representation of final product and may include optional equipment
