Part Number # FS150L
SKU # 2237742
Image provided may only be a representation of
final product and may include optional equipment
FS150L

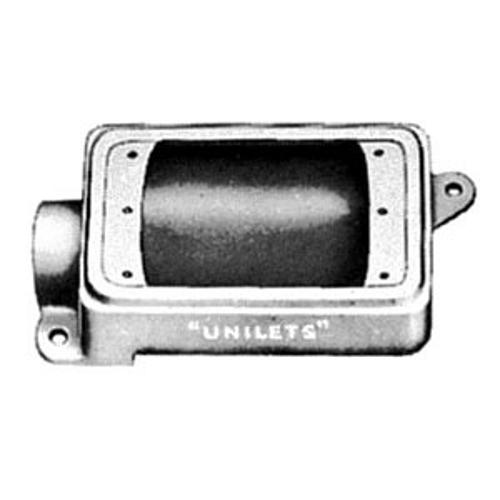

Appleton FS150L Device Box
Part Number # FS150L
SKU # 2237742
Appleton FS150L Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FS150L |
| SKU #: | 2237742 |
| Cable Entry Size: | Knockout |
| Capacity: | 25, 25 cu-in |
| Dimensions: | 6.06 in H x 2.81 in W x 2 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Tri-Coated |
| Hub Size: | 1/2, 1/2 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 1 |
| Number of Knockouts: | 1 |
| Number of Outlets: | 1 |
| Type: | Type FS Heavy Duty Shallow |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Lug |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381340854 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FS150L Device Box
Brand: Appleton
Part Number: FS150L
Appleton UNILETS Device Box, Type FS Heavy Duty Shallow, 1 Outlets, 1 Gangs, 1 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, Lug Mount, 25 cu-in, Malleable Iron, Tri-Coated, 6.06 in H x 2.81 in W x 2 in D
Additional Description: APLE-FS150L UNILET 1/2 WITH MTG LUGS
Catalog Description: UNILETS FS Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (1) 1/2 IN Hub, Mounting: (2) 5/16 Diameter Lugs, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 6.06 IN, Width:
FS150L Application
For use with threaded rigid/IMC conduitFS150L Includes
Mounting LugsFS150L Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
FS150L Standards
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1SKU #2237742Part Number #FS150LUNSPSC39121315UPC00781381340854
