Part Number # FSK1VDR
SKU # 2256324
FSK1VDR

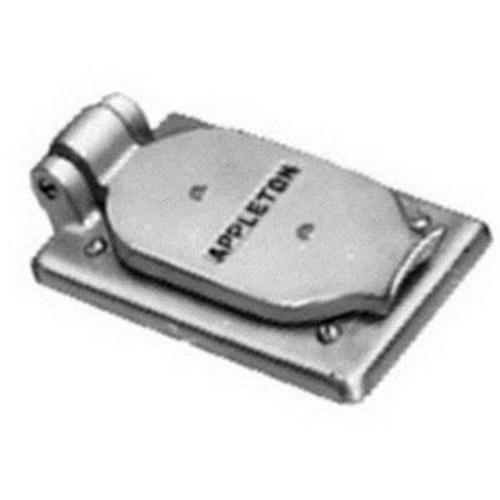

Appleton FSK1VDR Device Box Cover
Part Number # FSK1VDR
SKU # 2256324
Appleton FSK1VDR Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSK1VDR |
| SKU #: | 2256324 |
| Finish: | Triple-Coated |
| Mounting Orientation: | Vertical |
| Number of Gangs: | 1 |
| Type: | Cast |
| Country of origin: | MX |
| Length: | 4-9/16, 4-9/16 in |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Width: | 2-13/16, 2-13/16 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381348157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FSK1VDR Device Box Cover
Brand: Appleton
Part Number: FSK1VDR
Appleton Device Box Cover, Cast, 1 Gangs, 4-9/16 in Length, 2-13/16 in Width, Duplex Receptacle Cover, Vertical Mounting, Surface Mounting, Malleable Iron, Triple-Coated, Gray
Additional Description: APLE-FSK1VDR TYPE FS DUPLEX LIFT COVER
Catalog Description: Cast Cover, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Mounting: Box, Nema Rating: NEMA 3R, For Use With Duplex Flush Receptacle With Spring Cover
FSK1VDR Application
For use with duplex flush receptacle with spring cover, FS and FD cast hub ridge top boxesFSK1VDR Includes
Stainless Steel Screw and GasketFSK1VDR Item Features
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Cover tightens on largest perimeter of gasket and fits snugly against portion of gasket that wraps around ridge top of box
FSK1VDR Standards
CSA C22.2 No. 18.1, 001472|NEMA FB-1|UL 514A|UL File No. E2527FSK1VDR Warranty
LimitedSKU #2256324Part Number #FSK1VDRUNSPSC39121315UPC00781381348157
Image provided may only be a representation of final product and may include optional equipment
