Part Number # FSKD515
SKU # 2394177
FSKD515

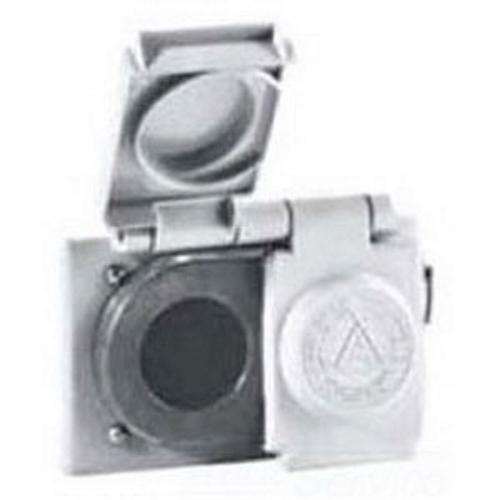

Appleton FSKD515 Device Box Cover
Part Number # FSKD515
SKU # 2394177
Appleton FSKD515 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSKD515 |
| SKU #: | 2394177 |
| Finish: | Epoxy Powder Coated |
| Mounting Orientation: | Horizontal |
| Number of Gangs: | 2 |
| Country of origin: | MX |
| Depth: | 1-5/32 in |
| Length: | 4-9/16 in |
| Material: | Die Cast Aluminum |
| Mounting type: | Surface |
| Width: | 2-13/16 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381461184 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FSKD515 Device Box Cover
Brand: Appleton
Part Number: FSKD515
Appleton Device Box Cover, 2 Gangs, 4-9/16 in Length, 2-13/16 in Width, 1-5/32 in D, Duplex Receptacle Cover, Horizontal Mount, Surface Mount, Die Cast Aluminum, Epoxy Powder Coated, Gray
Additional Description: APLE-FSKD515 15A-125V DUPLEX RECEPT AND COVER
Catalog Description: Receptacle With Duplex Box Cover, Number Of Poles: 2, Number Of Wires: 3, Amperage Rating: 15 AMP, Voltage Rating: 125 V, Material: Diecast Copperfree (4/10 Of 1 PCT) Aluminum, Nema Rating: NEMA 5-15R, Mounting: Box, Standard: NEMA WD-1
FSKD515 Application
For use with duplex FS box, non-locking blade plugsFSKD515 Standards
CEC Approved|NEMA WD1/WD5|NEC 406.8 (B)|UL 514ASKU #2394177Part Number #FSKD515UNSPSC39121315UPC00781381461184
Image provided may only be a representation of final product and may include optional equipment
