Part Number # FSKJ615
SKU # 2394200
Image Disclaimers Message
FSKJ615

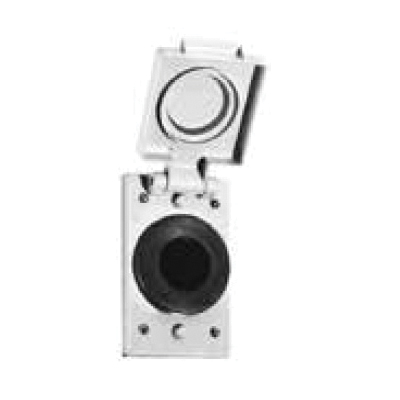

Appleton FSKJ615 Device Box Cover
Part Number # FSKJ615
SKU # 2394200
$95.52 / Each
Appleton FSKJ615 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSKJ615 |
| SKU #: | 2394200 |
| Finish: | Epoxy Powder Coated |
| Mounting Orientation: | Vertical |
| Number of Gangs: | 1 |
| Type: | Single |
| Color: | Gray |
| Country of origin: | MX |
| Depth: | 1-5/32 in |
| Length: | 4-9/16 in |
| Material: | Aluminum |
| Mounting type: | Surface |
| Width: | 2-13/16 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381461269 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.52 / Each
Quantity:
- Appleton Device Box Cover, Single, 1 Gangs, 4-9/16 in Length, 2-13/16 in Width, 1-5/32 in Depth, Rectangle Shape, Receptacle Cover, Vertical Mounting, Surface Mounting, Aluminum, Epoxy Powder Coated, Gray
FSKJ615 Application
For non-locking and locking blade plugsFSKJ615 Includes
Stainless Steel Screw and GasketFSKJ615 Item Features
- Provides full protection in damp or wet locations per NEC 406.8(B) and CEC
- Gasketed spring door cover closes tightly automatically to protect receptacle from moisture and dirt when not in use, with plug inserted, a heavy duty gasket in throat of receptacle seals around it to keep out moisture and dirt
- Receptacle interiors comply with NEMA standards WD-1 and WD-5
- Receptacle interiors are specification grade, back and side wired
- Single cover units accommodate NEMA configuration receptacles for locking or non-locking blade plugs, or toggle switches
- Duplex units accommodate one receptacle and one toggle switch or any combination of the two
- Covers open all the way, permitting easy plug insertion and withdrawal, also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box, large head cover screws are captivated
- Unique design of spring door hinge provides smooth action, duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts
- Spring door cover puts pressure on plug (without tilting plug) to hold plug in best position for providing optimum weatherproof seal
- Stainless steel hinge springs are completely enclosed - inside and out - for superior resistance against corrosion
- EPDM gaskets provide superior resistance to the weather, ozone and temperatures between -45.6 and 126.7 deg C
FSKJ615 Standards
UL 514A/E2527|NEMA FB-1, OS-1SKU #2394200Part Number #FSKJ615UNSPSC39121315UPC00781381461269
