Part Number # FSKWGF1
SKU # 47207
Image Disclaimers Message
Brand: Appleton
FSKWGF1

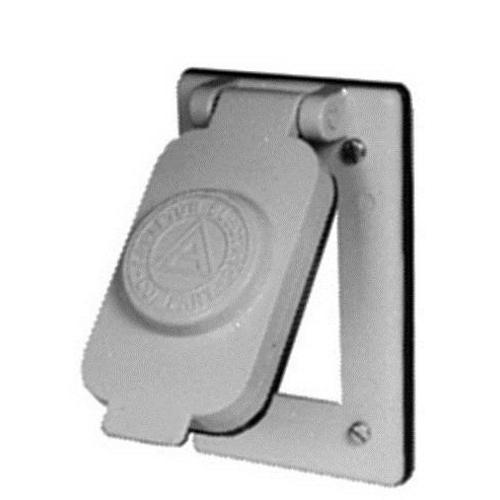

Appleton FSKWGF1 Device Box Cover
Part Number # FSKWGF1
SKU # 47207
$63.95 / Each
Appleton FSKWGF1 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSKWGF1 |
| SKU #: | 47207 |
| Finish: | Epoxy Powder Coated |
| Mounting Orientation: | Vertical |
| Number of Gangs: | 1 |
| Number of Outlets: | 1 |
| Type: | Single |
| Color: | Gray |
| Country of origin: | MX |
| Depth: | 1-5/32, 1-5/32 in |
| Length: | 6-7/16, 6-7/16 in |
| Material: | Die Cast Copper Free Aluminum |
| Mounting type: | Surface |
| Width: | 2-13/16, 2-13/16 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381631266 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.95 / Each
Quantity:
- Appleton Device Box Cover, Single, 1 Outlets, 1 Gangs, 6-7/16 in Length, 2-13/16 in Width, 1-5/32 in Depth, Duplex Receptacle Cover, Vertical Mounting, Surface Mounting, Die Cast Copper Free Aluminum, Epoxy Powder Coated, Gray
FSKWGF1 Application
For use with GFI-meets NEMA 3R wet location in closed position onlyFSKWGF1 Includes
Stainless Steel ScrewsFSKWGF1 Item Features
- Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box
- Large head cover screws are captivated
- Single cover units accommodate NEMA configuration receptacles for locking or non-locking blade plugs, or toggle switches
- Duplex units accommodate one receptacle and one toggle switch or any combination of the two
- Covers open all the way, permitting easy plug insertion and withdrawal, also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box, large head cover screws are captivated
- Unique design of spring door hinge provides smooth action, duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts
- Spring door cover puts pressure on plug (without tilting plug) to hold plug in best position for providing optimum weatherproof seal
FSKWGF1 Standards
UL 514A File No. E2527|CSA C22.2 No. 18.1, 001472|NEMA FB-1FSKWGF1 Warranty
LimitedSKU #47207Part Number #FSKWGF1UNSPSC39121315UPC00781381631266
