Part Number # FSKWR1
SKU # 2394201
Image Disclaimers Message
FSKWR1

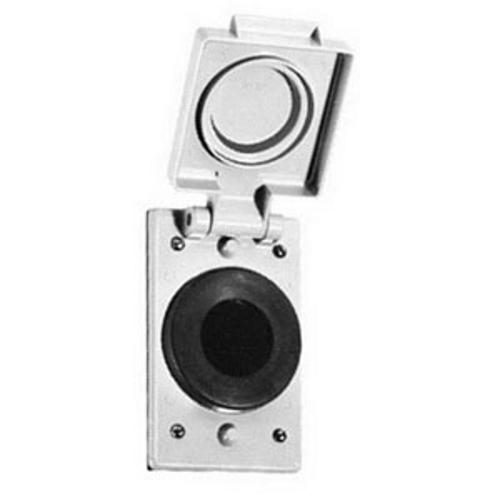

Appleton FSKWR1 Device Box Cover
Part Number # FSKWR1
SKU # 2394201
$52.62 / Each
Appleton FSKWR1 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSKWR1 |
| SKU #: | 2394201 |
| Finish: | Epoxy Powder Coated |
| Mounting Orientation: | Vertical |
| Number of Gangs: | 1 |
| Number of Outlets: | 1 |
| Type: | Single |
| Country of origin: | MX |
| Depth: | 1-5/32 in |
| Length: | 4-9/16 in |
| Material: | Die Cast Copper Free Aluminum |
| Mounting type: | Surface |
| Width: | 2-13/16 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381458320 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.62 / Each
Quantity:
- Appleton Device Box Cover, Single, 1 Outlets, 1 Gangs, 4-9/16 in Length, 2-13/16 in Width, 1-5/32 in Depth, Receptacle Cover, Vertical Mounting, Surface Mounting, Die Cast Copper Free Aluminum, Epoxy Powder Coated, Gray
FSKWR1 Application
For non-locking blade plugsFSKWR1 Item Features
- Provides full protection in damp or wet locations per NEC 406.8(B) and CEC
- Gasketed spring door cover closes tightly automatically to protect receptacle from moisture and dirt when not in use, with plug inserted, a heavy duty gasket in throat of receptacle seals around it to keep out moisture and dirt
- Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box
- Large head cover screws are captivated
- Single cover units accommodate NEMA configuration receptacles for locking or non-locking blade plugs, or toggle switches
- Duplex units accommodate one receptacle and one toggle switch or any combination of the two
- Covers open all the way, permitting easy plug insertion and withdrawal, also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box, large head cover screws are captivated
- Unique design of spring door hinge provides smooth action, duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts
- Spring door cover puts pressure on plug (without tilting plug) to hold plug in best position for providing optimum weatherproof seal
FSKWR1 Standards
UL 514A File No. E2527|NEMA FB-1/OS-1SKU #2394201Part Number #FSKWR1UNSPSC39121315UPC00781381458320
