Part Number # FSKWT2
SKU # 2226810
FSKWT2

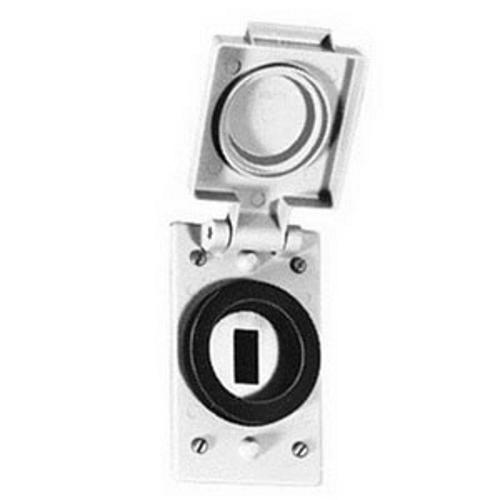

Appleton FSKWT2 Device Box Cover
Part Number # FSKWT2
SKU # 2226810
Appleton FSKWT2 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | FSKWT2 |
| SKU #: | 2226810 |
| Depth: | 1-5/32 in |
| Material: | Die Cast Copper Free Aluminum |
| UNSPSC: | 39121315 |
| UPC: | 00781381462280 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton FSKWT2 Device Box Cover
Brand: Appleton
Part Number: FSKWT2
Appleton Device Box Cover, Single, 1 Outlets, 1 Gangs, 4-9/16 in Length, 2-13/16 in Width, 1-5/32 in Depth, Toggle Switch/Receptacle Cover, Vertical Mounting, Surface Mounting, Die Cast Copper Free Aluminum, Epoxy Powder Coated, Gray
Additional Description: APLE-FSKWT2 WET LOC FSK TOGGLE SW COVER
Catalog Description: Single Receptacle Cover, Material: Diecast Copperfree (4/10 Of 1 PCT) Aluminum, Size: 1-19/32 IN Opening, Number Of Outlet: (1) Toggle Switch, Mounting: Box, Length: 4.56 IN, Width: 2.81 IN, For Use With Toggle Switches
FSKWT2 Application
For use with toggle switchesFSKWT2 Item Features
- Provides full protection in damp or wet locations per NEC 406.8(B) and CEC
- Gasketed spring door cover closes tightly automatically to protect receptacle from moisture and dirt when not in use, with plug inserted, a heavy duty gasket in throat of receptacle seals around it to keep out moisture and dirt
- Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box
- Large head cover screws are captivated
- Single cover units accommodate NEMA configuration receptacles for locking or non-locking blade plugs, or toggle switches
- Duplex units accommodate one receptacle and one toggle switch or any combination of the two
- Covers open all the way, permitting easy plug insertion and withdrawal, also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box, large head cover screws are captivated
- Unique design of spring door hinge provides smooth action, duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts
- Spring door cover puts pressure on plug (without tilting plug) to hold plug in best position for providing optimum weatherproof seal
FSKWT2 Standards
UL 514A File No. E2527|NEMA FB-1/OS-1SKU #2226810Part Number #FSKWT2UNSPSC39121315UPC00781381462280
Image provided may only be a representation of final product and may include optional equipment
