Part Number # GH125B
SKU # 2464902
GH125B
Appleton GH125B
Part Number # GH125B
SKU # 2464902
Appleton GH125B Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GH125B |
| SKU #: | 2464902 |
| Dimensions: | 1-7/8 in L x 2-1/2 in W x 2-11/16 in H |
| Series: | GH Series |
| Specifications: | 3/8 in Hole |
| Type: | Swivel |
| UNSPSC: | 39121613 |
| UPC: | 00783126244359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GH125B
Brand: Appleton
Part Number: GH125B

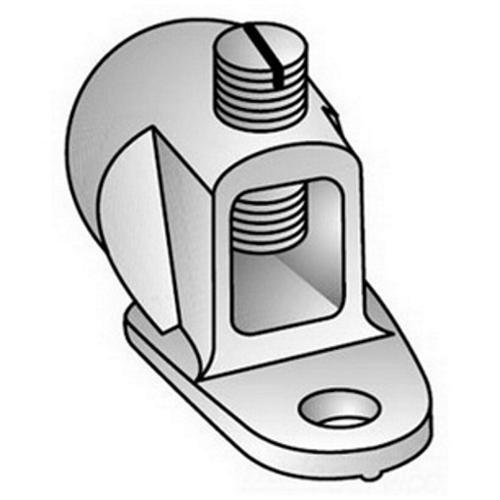

O-Z/Gedney Grounding Hub, Swivel, Series: GH Series, 1-1/4 in Trade, 4/0 AWG to 500 kcmil Conductor, Specifications: 3/8 in Hole, Cast Bronze, 1-7/8 in L x 2-1/2 in W x 2-11/16 in H Dimensions, O-Z/Gedney Grounding Hub ADDITIONAL DETAILS
Additional Description: APLE-GH125B GNDG HUB
Catalog Description: OZ-Gedney Type GH Swivel Ground Hub, Conductor Size: 4/0 AWG - 500 KCMIL, Length: 1-7/8 IN, Size: 1-1/4 IN, Cast Bronze, Screws: Brass, 2-11/16 IN Height, Dimension B: 2-1/2 IN, Dimension D: 3/8 IN, Third Party Certification: UL File Number E24264, Applicable Third Party Standards: UL 467, Federal Specification W-F-406E, For Use With Universal Ground Clamps To Connect Grounding Conductors Run Bare, In Armor Or In Conduit
GH125B Application
For universal ground clamps to connect grounding conductors run bare, in armor or in conduitGH125B Item Features
- Fits all basic ground clamp systems, G-200G through G-1200G and G-200B through G-1200B
GH125B Standards
UL 467 File No. E24264|Federal Specification W-F-406ESKU #2464902Part Number #GH125BUNSPSC39121613UPC00783126244359
Image provided may only be a representation of final product and may include optional equipment
