GRC100

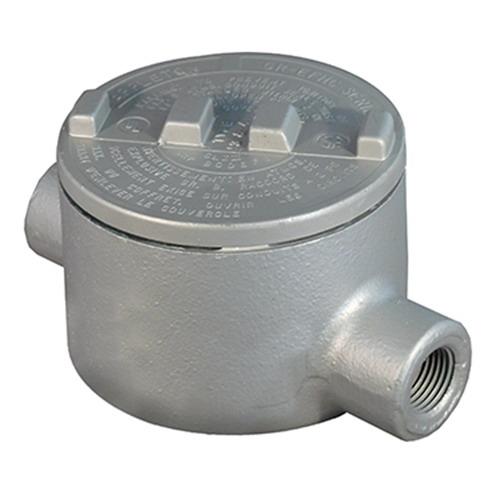

Appleton GRC100 Conduit Outlet Box
Part Number # GRC100
SKU # 2384780
Appleton GRC100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRC100 |
| SKU #: | 2384780 |
| Type: | C-Style Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39121308 |
| UPC: | 00781381436908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRC100 Conduit Outlet Box
Brand: Appleton
Part Number: GRC100
Appleton UNILETS Conduit Outlet Box, C-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Additional Description: APLE-GRC100 1 GR UNILET TYPE C
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1 IN, Cable Entry: (2) 1 IN GRC Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1/4
GRC100 Application
Indoor/Outdoor ApplicationsGRC100 Includes
Internal Ground Screw and O-RingGRC100 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRC100 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRC100 Warranty
LimitedSKU #2384780Part Number #GRC100UNSPSC39121308UPC00781381436908
Image provided may only be a representation of final product and may include optional equipment
