GRC125
Appleton GRC125
Part Number # GRC125
SKU # 2469849
Appleton GRC125 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRC125 |
| SKU #: | 2469849 |
| Cover Opening Size: | 3.94 in |
| Dimensions: | 4-1/2 in H x 4-1/2 in W x 2-3/4 in D |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | C-Style Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39121308 |
| UPC: | 00781381437059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRC125
Brand: Appleton
Part Number: GRC125

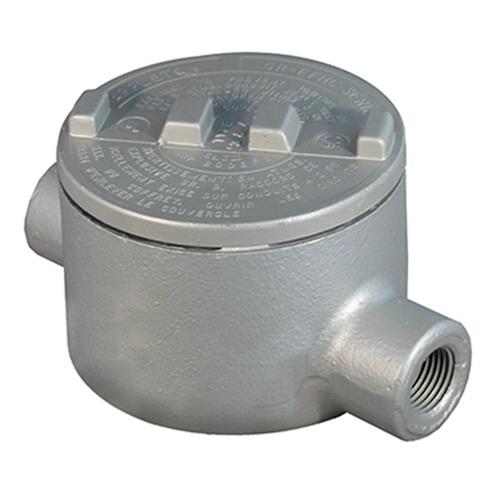

Appleton® UNILETS® Conduit Outlet Box, C-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1-1/4 in, 3.94 in Cover Opening Size, 31 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 4-1/2 in H x 4-1/2 in W x 2-3/4 in D
Additional Description: APLE-GRC125 1 1/4 GR UNILET TYPE C
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1-1/4 IN, Cable Entry: (2) 1-1/4 IN GRC Hub, Cubic Capacity: 31 CU-IN, Knockouts: No, Cover Opening: 3.94 IN, Form Number: 2, Height: 4-1/2 IN, Width: 4-1/2 IN, Depth
GRC125 Application
Indoor/Outdoor ApplicationsGRC125 Includes
Internal Ground Screw and O-RingGRC125 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRC125 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRC125 Warranty
LimitedSKU #2469849Part Number #GRC125UNSPSC39121308UPC00781381437059
Image provided may only be a representation of final product and may include optional equipment
