Part Number # GRCA75A
SKU # 137741
GRCA75A

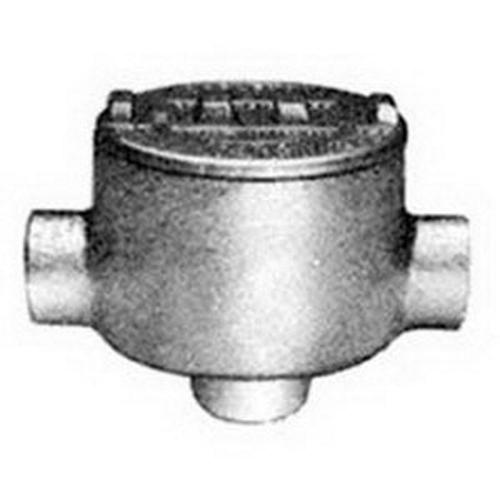

Appleton GRCA75A Conduit Outlet Box
Part Number # GRCA75A
SKU # 137741
Appleton GRCA75A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRCA75A |
| SKU #: | 137741 |
| Dimensions: | 3-3/4 in H x 3-3/4 in W x 2-1/4 in D |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | CA-Style Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39121308 |
| UPC: | 00781381621717 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRCA75A Conduit Outlet Box
Brand: Appleton
Part Number: GRCA75A
Appleton UNILETS Conduit Outlet Box, CA-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 3/4 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Aluminum, Epoxy Powder Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Additional Description: APLE-GRCA75A 3/4 GR UNILET TYPE CA
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 3, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 3/4 IN, Cable Entry: (3) 3/4 IN GRC Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4
GRCA75A Application
Indoor/Outdoor ApplicationsGRCA75A Includes
Internal Ground Screw and O-RingGRCA75A Item Features
- Offers ten hub arrangements
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
GRCA75A Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRCA75A Warranty
LimitedSKU #137741Part Number #GRCA75AUNSPSC39121308UPC00781381621717
Image provided may only be a representation of final product and may include optional equipment
