Part Number # GRE50
SKU # 2392548
Image Disclaimers Message
Brand: Appleton
GRE50

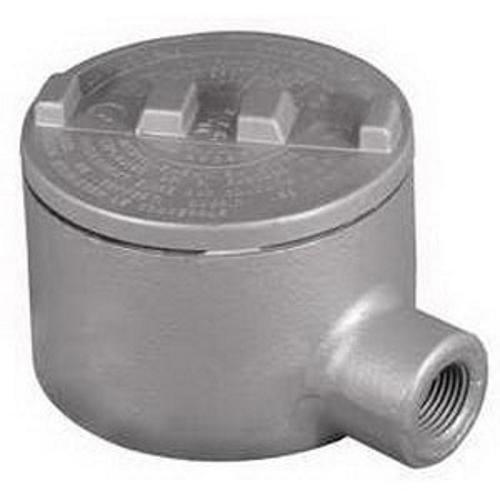

Appleton GRE50 Unilets Conduit Outlet Box
Part Number # GRE50
SKU # 2392548
$38.73 / Each
Typical price:$59.86 / Each
Appleton GRE50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRE50 |
| SKU #: | 2392548 |
| Capacity: | 18 cu-in |
| Cover Opening Size: | 3.38 in |
| Dimensions: | 3-3/4 in H x 3-3/4 in W x 2-1/4 in D |
| Finish: | Triple Coated |
| Series: | GR Series |
| Size: | 1/2 in |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | E-Style Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381437554 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$38.73 / Each
Typical price:$59.86 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Box, E-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1/2 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
GRE50 Application
Indoor/Outdoor ApplicationsGRE50 Includes
Internal Ground Screw and O-RingGRE50 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRE50 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRE50 Warranty
LimitedSKU #2392548Part Number #GRE50UNSPSC39121308UPC00781381437554
