Part Number # GRFL75M
SKU # 2443144
Image Disclaimers Message
GRFL75M
Appleton GRFL75M
Part Number # GRFL75M
SKU # 2443144
$71.55 / Each
Typical price:$110.58 / Each
Appleton GRFL75M Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRFL75M |
| SKU #: | 2443144 |
| Capacity: | 18 cu-in |
| Cover Opening Size: | 3.38 in |
| Dimensions: | 5.38 in Dia x 2.75 in H |
| Finish: | Triple Coated |
| Series: | GRF |
| Size: | 3/4 in |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | L-Style Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Flanged |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381773485 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$71.55 / Each
Typical price:$110.58 / Each
Quantity:

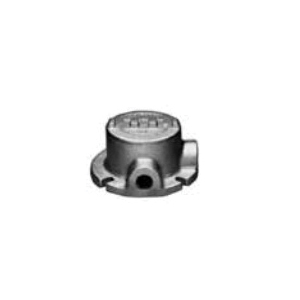

- Appleton UNILETS Conduit Outlet Box, L-Style Dust-Ignitionproof Explosionproof, Series: GRF, 3/4 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Flanged Mount, Malleable Iron, Triple Coated, 5.38 in Dia x 2.75 in H
GRFL75M Application
Indoor/Outdoor ApplicationsGRFL75M Includes
CoverGRFL75M Item Features
- Boxes have integral mounting flange
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRFL75M Standards
Class 1, Zone 1 and 2 IIA and IIB|UL File No. E10444|CSA C22.2 No. 25/30|CSA 013017|Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIIGRFL75M Warranty
LimitedSKU #2443144Part Number #GRFL75MUNSPSC39121308UPC00781381773485
