Appleton GRFX50 Conduit Outlet Box
Part Number # GRFX50
SKU # 2284753

GRFX50
Appleton GRFX50 Conduit Outlet Box
Part Number # GRFX50
SKU # 2284753
Appleton GRFX50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRFX50 |
| SKU #: | 2284753 |
| UNSPSC: | 39121308 |
| UPC: | 00781381439107 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRFX50 Conduit Outlet Box
Brand: Appleton
Part Number: GRFX50
Appleton UNILETS Conduit Outlet Box, X-Style Dust-Ignitionproof Explosionproof, Series: GRF, 1/2 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Flanged Mount, Malleable Iron, Triple Coated, 5.38 in Dia x 2.75 in H
Additional Description: APLE-GRFX50 1/2 GR FLANGED UNILET TYPE X
Catalog Description: UNILETS Flanged Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (4) 1/2 IN GRFX Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN,
GRFX50 Application
Indoor/Outdoor ApplicationsGRFX50 Item Features
- Boxes have integral mounting flange
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRFX50 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIISKU #2284753Part Number #GRFX50UNSPSC39121308UPC00781381439107

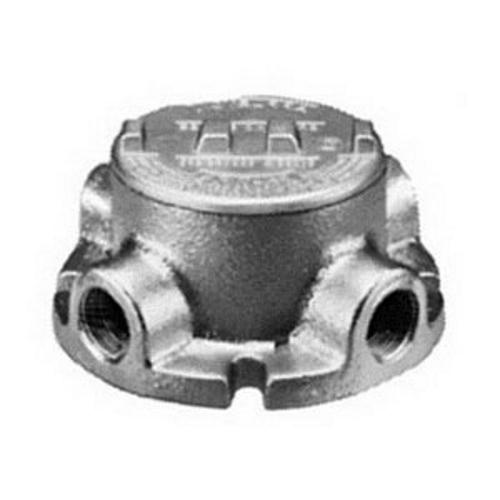

Image provided may only be a representation of final product and may include optional equipment
