Appleton GRHC50 Conduit Outlet Box
Part Number # GRHC50
SKU # 2340076

GRHC50
Appleton GRHC50 Conduit Outlet Box
Part Number # GRHC50
SKU # 2340076
Appleton GRHC50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRHC50 |
| SKU #: | 2340076 |
| Capacity: | 13.8 cu-in |
| Dimensions: | 3.75 in H x 3.75 in W x 1.63 in D |
| UNSPSC: | 39121308 |
| UPC: | 00781381439404 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRHC50 Conduit Outlet Box
Brand: Appleton
Part Number: GRHC50

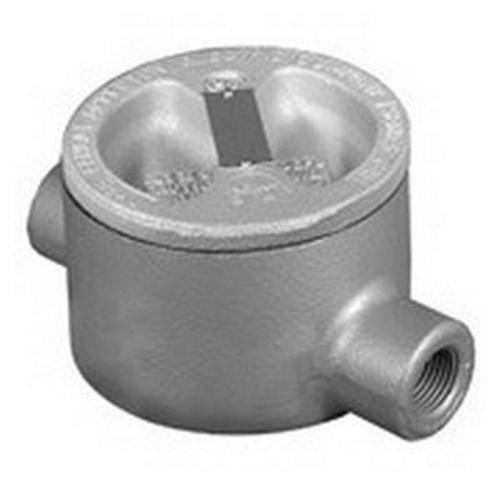

Appleton UNILETS Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRH, 1/2 in, 3.38 in Cover Opening Size, 13.8 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.63 in D
Additional Description: APLE-GRHC50 UNILET 1/2 W/COVER
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (2) 1/2 IN GRHC Hub, Cubic Capacity: 13.8 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.63 IN, Nema R
GRHC50 Application
Indoor/Outdoor ApplicationsGRHC50 Includes
Internal Ground Screw and O-RingGRHC50 Item Features
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Furnished with copper-free (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover
- General purpose wiring
- Internally threaded body with externally threaded cover
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRHC50 Standards
UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIIGRHC50 Warranty
LimitedSKU #2340076Part Number #GRHC50UNSPSC39121308UPC00781381439404
Image provided may only be a representation of final product and may include optional equipment
