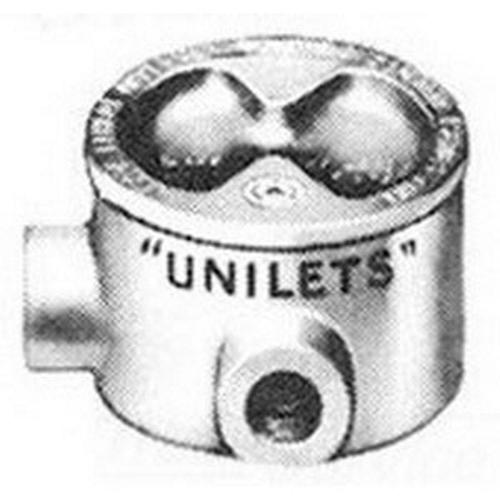

Appleton GRHL100 Unilets Conduit Outlet Box
Part Number # GRHL100
SKU # 2406121

GRHL100
Appleton GRHL100 Unilets Conduit Outlet Box
Part Number # GRHL100
SKU # 2406121
Appleton GRHL100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRHL100 |
| SKU #: | 2406121 |
| Capacity: | 13.8 cu-in |
| Dimensions: | 3.75 in H x 3.75 in W x 1.63 in D |
| UNSPSC: | 39121308 |
| UPC: | 00781381439657 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRHL100 Unilets Conduit Outlet Box
Brand: Appleton
Part Number: GRHL100
Appleton UNILETS Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRH, 1 in, 3.38 in Cover Opening Size, 13.8 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.63 in D
Additional Description: APLE-GRHL100 UNILET 1 W/COVER
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1 IN, Cable Entry: (2) 1 IN GRHL Hub, Cubic Capacity: 13.8 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.63 IN, Nema Rati
GRHL100 Application
Indoor/Outdoor ApplicationsGRHL100 Includes
Internal Ground Screw and O-RingGRHL100 Item Features
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Furnished with copper-free (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover
- General purpose wiring
- Internally threaded body with externally threaded cover
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRHL100 Standards
UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIIGRHL100 Warranty
LimitedSKU #2406121Part Number #GRHL100UNSPSC39121308UPC00781381439657
Image provided may only be a representation of final product and may include optional equipment
