Part Number # GRJCA75
SKU # 2211746
GRJCA75
Appleton GRJCA75 Conduit Outlet Box
Part Number # GRJCA75
SKU # 2211746
Appleton GRJCA75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRJCA75 |
| SKU #: | 2211746 |
| Cover Opening Size: | 2.13, 2.13 in |
| Dimensions: | 2.88 in H x 2.88 in W x 2.06 in D |
| Series: | GRJ |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| UNSPSC: | 39121308 |
| UPC: | 00781381440356 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRJCA75 Conduit Outlet Box
Brand: Appleton
Part Number: GRJCA75
Appleton UNILETS Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GRJ, 3/4 in, 2.13 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 2.88 in H x 2.88 in W x 2.06 in D
Additional Description: APLE-GRJCA75 3/4 TYPE TIGHT FITTING
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 3, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (3) 3/4 IN GRJCA Hub, Cubic Capacity: 7.3 CU-IN, Knockouts: No, Cover Opening: 2.13 IN, Height: 2.88 IN, Width: 2.88 IN, Depth: 2.06 IN, Finish:
GRJCA75 Application
Indoor/Outdoor ApplicationsGRJCA75 Includes
Internal Ground ScrewGRJCA75 Item Features
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Externally threaded body with internally threaded cover
- Small, round conduit outlet boxes
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRJCA75 Standards
UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIIGRJCA75 Warranty
LimitedSKU #2211746Part Number #GRJCA75UNSPSC39121308UPC00781381440356

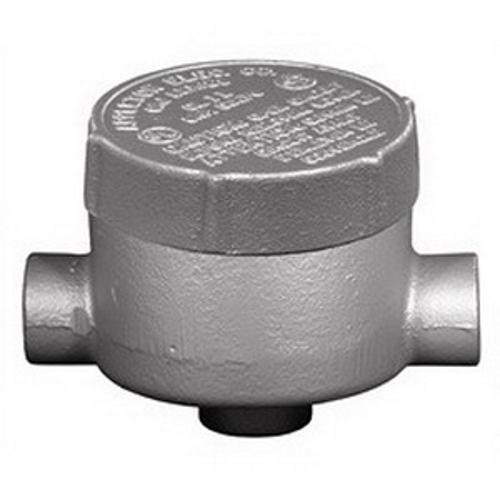

Image provided may only be a representation of final product and may include optional equipment
