Part Number # GRLB150A
SKU # 2416558
Image Disclaimers Message
Brand: Appleton
GRLB150A

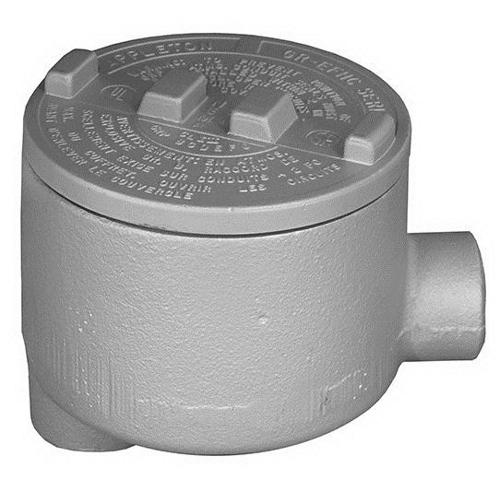

Appleton GRLB150A Unilets Conduit Outlet Box
Part Number # GRLB150A
SKU # 2416558
$360.60 / Each
Appleton GRLB150A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRLB150A |
| SKU #: | 2416558 |
| Capacity: | 72 cu-in |
| Cover Opening Size: | 4.88 in |
| Dimensions: | 5.75 in H x 5.75 in W x 4.06 in D |
| Finish: | Epoxy Powder Coated |
| Series: | GR Series |
| Size: | 1-1/2 in |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | LB-Style Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381116992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$360.60 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Box, LB-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1-1/2 in, 4.88 in Cover Opening Size, 72 cu-in, For Use With: Threaded Metallic Conduit System, Aluminum, Epoxy Powder Coated, 5.75 in H x 5.75 in W x 4.06 in D
GRLB150A Application
Indoor/Outdoor ApplicationsGRLB150A Includes
Internal Ground Screw and O-RingGRLB150A Item Features
- Offers ten hub arrangements
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
GRLB150A Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRLB150A Warranty
LimitedSKU #2416558Part Number #GRLB150AUNSPSC39121308UPC00781381116992
