Part Number # GRLB200A
SKU # 2371682
GRLB200A
Appleton GRLB200A Conduit Outlet Box
Part Number # GRLB200A
SKU # 2371682
Appleton GRLB200A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRLB200A |
| SKU #: | 2371682 |
| Capacity: | 76, 76 cu-in |
| Cover Opening Size: | 4.88, 4.88 in |
| Dimensions: | 5-3/4 in H x 5-3/4 in W x 4-1/4 in D |
| Finish: | Epoxy Powder Coated |
| Series: | GR Series |
| Size: | 2, 2 in |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | LB-Style Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381117029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

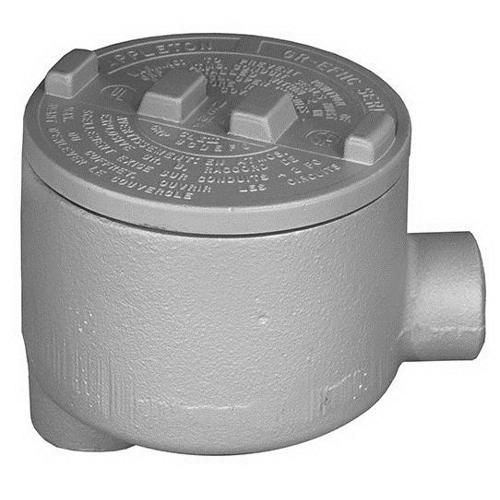

Appleton GRLB200A Conduit Outlet Box
Brand: Appleton
Part Number: GRLB200A
Appleton UNILETS Conduit Outlet Box, LB-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 2 in, 4.88 in Cover Opening Size, 76 cu-in, For Use With: Threaded Metallic Conduit System, Aluminum, Epoxy Powder Coated, 5-3/4 in H x 5-3/4 in W x 4-1/4 in D
Additional Description: APLE-GRLB200A GR BOX CAST ALUM 2 IN HUB
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 2 IN, Cable Entry: (2) 2 IN GRLB Hub, Cubic Capacity: 76 CU-IN, Knockouts: No, Cover Opening: 4.88 IN, Form Number: 3, Height: 5-3/4 I
GRLB200A Application
Indoor/Outdoor ApplicationsGRLB200A Includes
Internal Ground Screw and O-RingGRLB200A Item Features
- Offers ten hub arrangements
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
GRLB200A Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRLB200A Warranty
LimitedSKU #2371682Part Number #GRLB200AUNSPSC39121308UPC00781381117029
Image provided may only be a representation of final product and may include optional equipment
