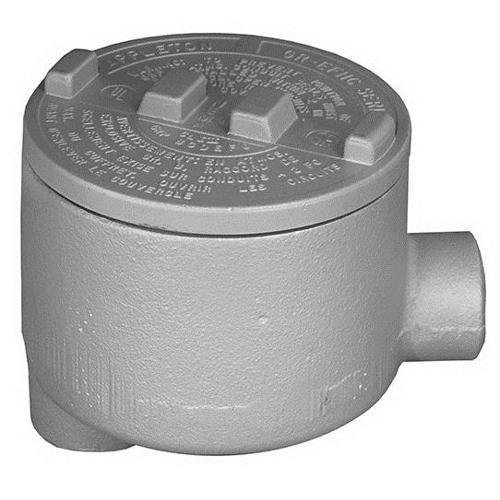

Appleton GRLB75 Conduit Outlet Box
Part Number # GRLB75
SKU # 3488

GRLB75
Appleton GRLB75 Conduit Outlet Box
Part Number # GRLB75
SKU # 3488
Appleton GRLB75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRLB75 |
| SKU #: | 3488 |
| UNSPSC: | 39121308 |
| UPC: | 00781381443401 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRLB75 Conduit Outlet Box
Brand: Appleton
Part Number: GRLB75
Appleton UNILETS Conduit Outlet Box, LB-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 3/4 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Additional Description: APLE-GRLB75 3/4 UNILET GR
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRLB Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2
GRLB75 Application
Indoor/Outdoor ApplicationsGRLB75 Includes
Internal Ground Screw and O-RingGRLB75 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRLB75 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRLB75 Warranty
LimitedSKU #3488Part Number #GRLB75UNSPSC39121308UPC00781381443401
Image provided may only be a representation of final product and may include optional equipment
