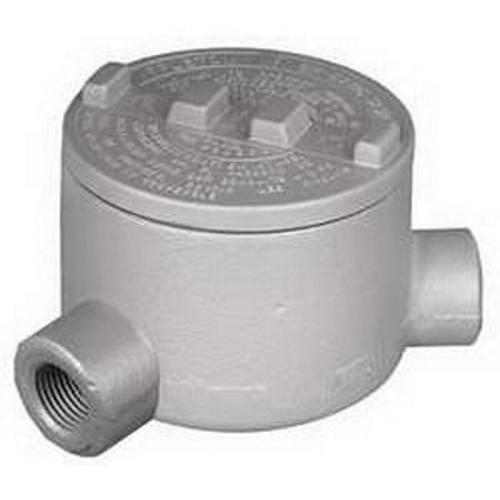

Appleton GRN100 Conduit Outlet Box
Part Number # GRN100
SKU # 2217281
$47.16 / Each
Typical price:$94.76 / Each
Appleton GRN100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRN100 |
| SKU #: | 2217281 |
| Type: | N-Style Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39121308 |
| UPC: | 00781381444200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.16 / Each
Typical price:$94.76 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Box, N-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
GRN100 Application
Indoor/Outdoor ApplicationsGRN100 Includes
Internal Ground Screw and O-RingGRN100 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRN100 Standards
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class IIIGRN100 Warranty
LimitedSKU #2217281Part Number #GRN100UNSPSC39121308UPC00781381444200
Image provided may only be a representation of final product and may include optional equipment
