Part Number # GRN150
SKU # 2217282

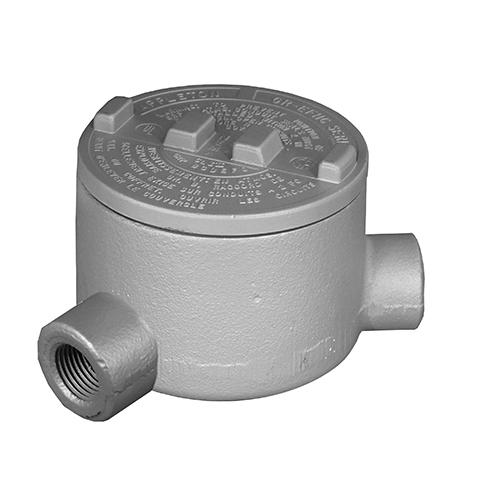

Image provided may only be a representation of
final product and may include optional equipment
GRN150
Appleton GRN150 Conduit Outlet Box
Part Number # GRN150
SKU # 2217282
Appleton GRN150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRN150 |
| SKU #: | 2217282 |
| Capacity: | 72, 72 cu-in |
| Cover Opening Size: | 4.88, 4.88 in |
| Dimensions: | 5.75 in H x 5.75 in W x 4.06 in D |
| Finish: | Triple Coated |
| Series: | GR Series |
| Size: | 1-1/2, 1-1/2 in |
| Suitable For Use With: | Threaded Metallic Conduit System |
| Type: | N-Style Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381444408 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRN150 Conduit Outlet Box
Brand: Appleton
Part Number: GRN150
Appleton UNILETS Conduit Outlet Box, N-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1-1/2 in, 4.88 in Cover Opening Size, 72 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 5.75 in H x 5.75 in W x 4.06 in D
Additional Description: APLE-GRN150 1 1/2 GR UNILET TYPE N
Catalog Description: Explosionproof Conduit Outlet Box, Style L, Hub Size 1-1/2 Inch, Hub Type External, Number of Hubs 2, Hub Location (2) Side, Capacity 72 Cu Inch, Shape Round, Cover Type Externally Threaded, Cover Opening Diameter 4.88 Inch, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Approval UL, CSA C22.2, Application General Purpose Wiring, Pulling of Wire, Connect Conduit Length and Change Direction of Conduit Run, Provide Access for Maintenance
GRN150 Application
Indoor/Outdoor ApplicationsGRN150 Includes
Internal Ground Screw and O-RingGRN150 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRN150 Standards
Class 1, Zone 1 and 2 IIA and IIB|UL File No. E10444|CSA C22.2 No. 25/30|CSA 013017|Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIIGRN150 Warranty
LimitedSKU #2217282Part Number #GRN150UNSPSC39121308UPC00781381444408
