GRSS50

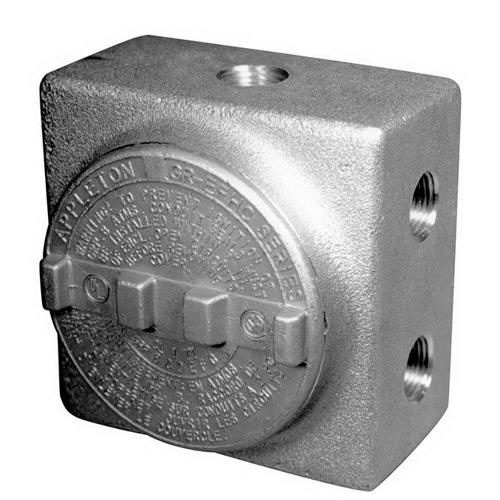

Appleton GRSS50 Explosionproof Conduit Outlet Box
Part Number # GRSS50
SKU # 2250390
Appleton GRSS50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRSS50 |
| SKU #: | 2250390 |
| Capacity: | 29, 29 cu-in |
| Cover Opening Size: | 3.38, 3.38 in |
| Dimensions: | 4.63 in H x 4.63 in W x 3.5 in D |
| Finish: | Epoxy Powder Coated |
| Series: | GRSS |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | Threaded Metal Conduit System |
| Type: | Dust-Ignitionproof Raintight |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381625425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRSS50 Explosionproof Conduit Outlet Box
Brand: Appleton
Part Number: GRSS50
Appleton UNILETS Explosionproof Conduit Outlet Box, Dust-Ignitionproof Raintight, Series: GRSS, 1/2 in Size, 3.38 in Cover Opening, 29 cu-in Capacity, For Use With: Threaded Metal Conduit System, Aluminum, Epoxy Powder Coated Finish, 4.63 in H x 4.63 in W x 3.5 in D Dimensions
Additional Description: APLE-GRSS50 1/2 GRSS ALUMINUM UNILET
Catalog Description: UNILETS GRSS Outlet Box, Number Of Outlet: 7, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1/2 IN, Cable Entry: (7) 1/2 IN Hub, Cubic Capacity: 29 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 4.63 IN, Width: 4.63 I
GRSS50 Application
Indoor/Outdoor ApplicationsGRSS50 Includes
(4) Close-Up Plugs, Internal Ground Screw and O-RingGRSS50 Item Features
- Explosionproof dust-ignitionproof, raintight
- Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Multiple hubs permit flexibility
- Complies with a wide range of classified area requirements
- Corrosion-resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Internally threaded aluminum bodies with externally threaded aluminum form one covers, has seven hubs - two on each of the sides, one on the top, one on the bottom and one on the center in the back
GRSS50 Standards
UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified, Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIIGRSS50 Warranty
LimitedSKU #2250390Part Number #GRSS50UNSPSC39121308UPC00781381625425
