Part Number # GRU02
SKU # 2214408
Image provided may only be a representation of
final product and may include optional equipment
GRU02

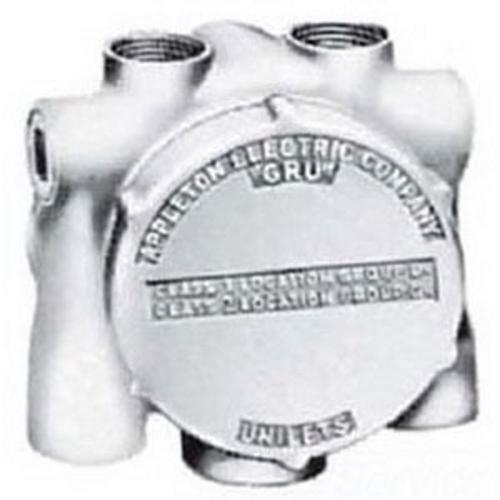

Appleton GRU02 Conduit Outlet Box
Part Number # GRU02
SKU # 2214408
Appleton GRU02 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRU02 |
| SKU #: | 2214408 |
| Capacity: | 25, 25 cu-in |
| Cover Opening Size: | 03/01/2004 in, 3-1/4, 3-1/4 in |
| Dimensions: | 5.13 in H x 5.25 in W x 2.19 in D |
| Finish: | Tri-Coated |
| Series: | GRU0 |
| Size: | 03/04/2021 in, 3/4, 3/4 in |
| Suitable For Use With: | Threaded Metal Conduit System |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381446150 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GRU02 Conduit Outlet Box
Brand: Appleton
Part Number: GRU02
Appleton Unilets Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRU0, 3/4 in, 3-1/4 in Cover Opening Size, 25 cu-in, For Use With: Threaded Metal Conduit System, Malleable Iron, Tri-Coated, 5.13 in H x 5.25 in W x 2.19 in D
Additional Description: APLE-GRU02 JUNCTION UNILET W/COVER
Catalog Description: UNILETS GRUO Outlet Box, Number Of Outlet: 8, Material: Malleable Iron, Size: 3/4 - 1 IN, Cable Entry: (1) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (2) 3/4 IN Hub At Bottom, (1) 1 IN Hub At Bottom, (1) 3/4 IN Hub At Back, Cubic Capacity: 25 CU-IN, Knockouts: No, Cover Opening: 3-1/4 IN, Height: 5.13 IN, Width: 5-1/4 IN, Depth: 2.19 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use With Threaded Metal Conduit
GRU02 Application
For pulling of wires, connect conduit lengths and change direction of conduit runs, provide access for maintece and complies with a wide range of classified area requirements and threaded metal conduitGRU02 Item Features
- Malleable iron bodies have high tensile strength and ductility
- Provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Furnished with covers
- General purpose wiring
- Union hubs permit easy wiring
- Externally threaded body with internally threaded cover
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant ideal for indoor and outdoor installations
GRU02 Standards
UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIISKU #2214408Part Number #GRU02UNSPSC39121308UPC00781381446150
