Appleton GRUJ2P
Part Number # GRUJ2P
SKU # 2462608

GRUJ2P
Appleton GRUJ2P
Part Number # GRUJ2P
SKU # 2462608
Appleton GRUJ2P Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GRUJ2P |
| SKU #: | 2462608 |
| Cover Opening Size: | 3-1/4 in |
| Dimensions: | 4.88 in H x 4.88 in W x 1.5 in D |
| Series: | GRUJ |
| UNSPSC: | 39121308 |
| UPC: | 00781381445757 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton GRUJ2P
Brand: Appleton
Part Number: GRUJ2P

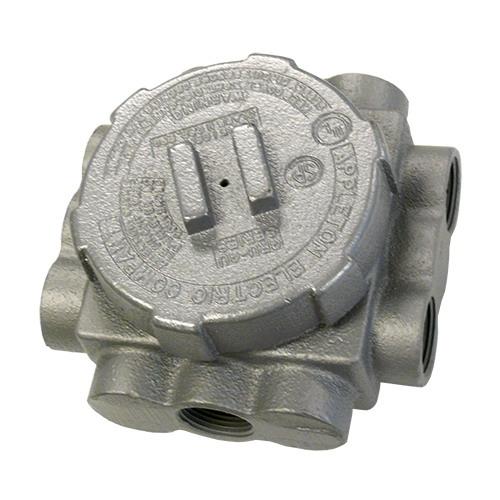

Appleton UNILETS Explosionproof Conduit Outlet Box, Dust-Ignitionproof, Series: GRUJ, 3/4 in Size, 3-1/4 in Cover Opening, 25 cu-in Capacity, For Use With: Threaded Metal Conduit System, Malleable Iron, Triple Coated Finish, 4.88 in H x 4.88 in W x 1.5 in D Dimensions
Additional Description: APLE-GRUJ2P 3/4 EXP PR DUST TI UNILET
Catalog Description: UNILETS GRUJ Outlet Box, Number Of Outlet: 11, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (1) 3/4 IN Hub At Bottom, (4) 3/4 IN Hub At Back, Cubic Capacity: 25 CU-IN, Knockouts:
GRUJ2P Application
Indoor/Outdoor ApplicationsGRUJ2P Includes
Cover and Close-Up PlugsGRUJ2P Item Features
- Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Union hubs permit easy wiring
- Externally threaded body with internally threaded cover
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion-resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Zinc electro plated, chromate and epoxy powder coated
GRUJ2P Standards
UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIIGRUJ2P Warranty
LimitedSKU #2462608Part Number #GRUJ2PUNSPSC39121308UPC00781381445757
Image provided may only be a representation of final product and may include optional equipment
