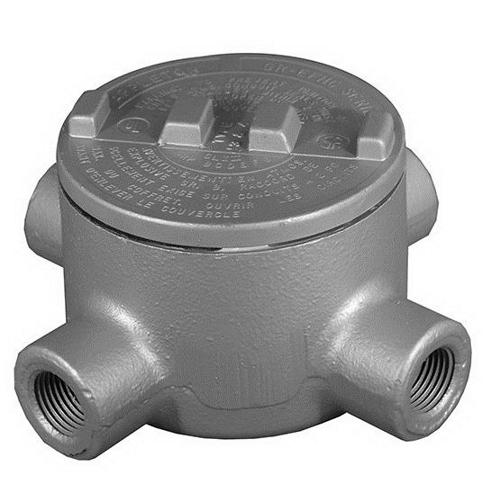

Appleton GRX100 Conduit Outlet Box
Part Number # GRX100
SKU # 3504
$88.95 / Each
Appleton GRX100 Key Features
Brand: Appleton
Part Number # GRX100
SKU #3504
Capacity: 18, 18 cu-in
Cover Opening Size: 3.38, 3.38 in
Dimensions: 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Finish: Triple Coated
Series: GR Series
Size: 1, 1 in
Suitable For Use With: Threaded Metallic Conduit System
Type: X-Style Dust-Ignitionproof Explosionproof
Country of origin: MX
Material: Malleable Iron
Manufacturer Name: Emerson Electric
UNSPSC: 39121308
UPC: 00781381446853
$88.95 / Each
Appleton GRX100 Conduit Outlet Box
Brand: Appleton
Part Number: GRX100
Appleton UNILETS Conduit Outlet Box, X-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Additional Description: APLE-GRX100 1 GR UNLI WITH SURFACE COVR
Catalog Description: UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1 IN, Cable Entry: (4) 1 IN GRTX Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1/4
GRX100 Application
Indoor/Outdoor ApplicationsGRX100 Includes
Internal Ground Screw and O-RingGRX100 Item Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
GRX100 Standards
Class 1, Zone 1 and 2 IIA and IIB|UL File No. E10444|CSA C22.2 No. 25/30|CSA 013017, Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIIGRX100 Warranty
LimitedSKU #3504Part Number #GRX100UNSPSC39121308UPC00781381446853
