GUAL150

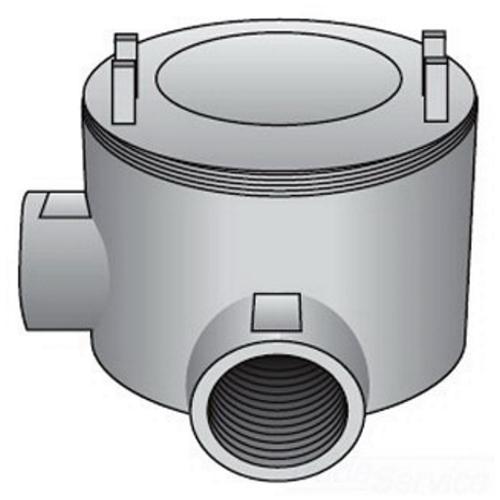

Appleton GUAL150 Conduit Outlet Box
Part Number # GUAL150
SKU # 2216152
$214.27 / Each
Typical price:$264.92 / Each
Appleton GUAL150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GUAL150 |
| SKU #: | 2216152 |
| Capacity: | 70, 70 cu-in |
| Cover Opening Size: | 5-1/8, 5-1/8 in |
| Dimensions: | 5-5/8 in W x 3-3/4 in D x 5-5/8 in H |
| Finish: | Electro-Zinc Plated/Aluminum Enamel Coated |
| Series: | GUA |
| Size: | 1-1/2, 1-1/2 in |
| Suitable For Use With: | RMC and IMC Conduit |
| Type: | Explosionproof Dust-Ignition Proof Round L-Style |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00783126247244 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$214.27 / Each
Typical price:$264.92 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Box, Explosionproof Dust-Ignition Proof Round L-Style, Series: GUA, 1-1/2 in, 5-1/8 in Cover Opening, 70 cu-in Capacity, For Use With: RMC and IMC Conduit, Malleable Iron, Electro-Zinc Plated/Aluminum Enamel Coated, 5-5/8 in W x 3-3/4 in D x 5-5/8 in H
GUAL150 Application
For wet locationsGUAL150 Includes
Malleable Iron Externally Threaded Cover, Internal Ground Screw, O-Ring Gasket and (2) Side External Tapered NPT HubsGUAL150 Item Features
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock
- Smooth hub bushings protect insulation when pulling conductors
- Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening
- O-ring gasket provided to assure NEMA 4 rating
- Used with threaded metal conduit for general purpose wiring
- GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors and as pull and splice boxes
- They feature internally threaded bodies and cast in brackets on the cover
GUAL150 Standards
CEC Class I Division 1 and 2 Groups B, C, D, Class I Zone 1 and 2 Groups IIA, IIB, Class II Division 1 and 2 Groups E, F, G, Class III|Federal Specification A-A-50563|CSA 020945/C22.2 No. 30|Military Specification Mil-F-28675|NEMA 4/7CD/9EFG|NEC 500/503/505|UL 886/E-30513SKU #2216152Part Number #GUAL150UNSPSC39121308UPC00783126247244
