Part Number # GUAT150
SKU # 2216153
GUAT150
Appleton GUAT150 Conduit Outlet Box
Part Number # GUAT150
SKU # 2216153
Appleton GUAT150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GUAT150 |
| SKU #: | 2216153 |
| Cover Opening Size: | 5-5/8, 5-5/8 in |
| Dimensions: | 5-5/8 in H x 5-5/8 in W x 3-3/4 in D |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Series: | GUA |
| Type: | Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39121308 |
| UPC: | 00783126247442 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GUAT150 Conduit Outlet Box
Brand: Appleton
Part Number: GUAT150
O-Z/Gedney Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GUA, 1-1/2 in, 5-5/8 in Cover Opening Size, 70 cu-in, For Use With: IMC/Rigid Conduit, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 5-5/8 in H x 5-5/8 in W x 3-3/4 in D
Additional Description: APLE-GUAT150 HAZ LOC COND OUTL BX
Catalog Description: OZ-Gedney Type GUAT Conduit Outlet Box, Number Of Outlet: 3, Malleable Iron Body/Cover, Size: 1-1/2 IN, Cable Entry: (3) 1-1/2 IN Hubs, 70 CU-IN Capacity, No, 5-5/8 IN Cover Opening, Finish: Zinc Electroplated With Aluminum Enamel, 5-5/8 IN Width, 3-3/4 IN Depth, 5-5/8 IN Height, NEMA Rating: NEMA 4, 7CD, 9EFG, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563, For Rigid Conduit And IMC
GUAT150 Application
For providing access to conductors for pulling, splicing, maintece and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bendsGUAT150 Item Features
- For use in hazardous locations to provide for change in conduit direction access to conductors and as pull and splice boxes
- They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- O-ring gasket provides NEMA 4 rating
- Smooth hub bushings protect insulation when pulling conductors
- Cast in brackets on cover for use with breaker bar tools for tightening/loosening
- Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
GUAT150 Standards
UL File No. E30513|Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III|CSA File No. 020945|UL 886|CSA C22.2 No. 30|NEC Articles 500-503, 505|Military Specification Mil-F-28675|Federal Specification A-A-50563SKU #2216153Part Number #GUAT150UNSPSC39121308UPC00783126247442

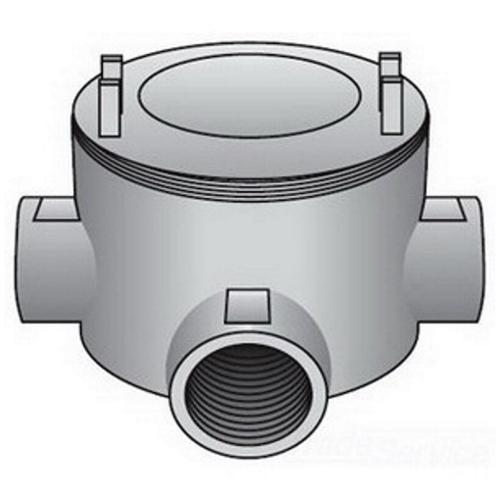

Image provided may only be a representation of final product and may include optional equipment
