Part Number # GUJX50
SKU # 2295144
Image provided may only be a representation of
final product and may include optional equipment
GUJX50

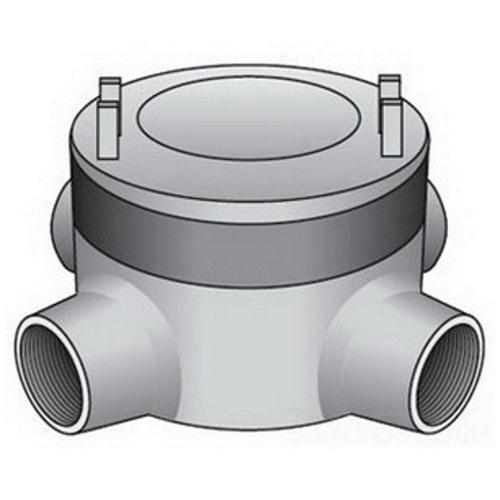

Appleton GUJX50 Conduit Outlet Box
Part Number # GUJX50
SKU # 2295144
Appleton GUJX50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | GUJX50 |
| SKU #: | 2295144 |
| Capacity: | 13.5, 13.5 cu-in |
| Cover Opening Size: | 3, 3 in |
| Dimensions: | 3-7/8 in W x 2 in D x 3-7/8 in H |
| Finish: | Electro-Zinc Plated |
| Series: | GUJ |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | RMC and IMC Conduit |
| Type: | Explosionproof Dust-Ignition Proof Round X-Style |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00783126247879 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton GUJX50 Conduit Outlet Box
Brand: Appleton
Part Number: GUJX50
O-Z/Gedney Conduit Outlet Box, Explosionproof Dust-Ignition Proof Round X-Style, Series: GUJ, 1/2 in, 3 in Cover Opening, 13.5 cu-in Capacity, For Use With: RMC and IMC Conduit, Malleable Iron, Electro-Zinc Plated, 3-7/8 in W x 2 in D x 3-7/8 in H
Additional Description: APLE-GUJX50 HAZ LOC COND OUTL BX
Catalog Description: OZ-Gedney Type GUJX Conduit Outlet Box, Number Of Outlet: 4, Malleable Iron Body/Cover, Size: 1/2 IN, Cable Entry: (4) 1/2 IN Hubs, 13.5 CU-IN Capacity, No, 3 IN Cover Opening, Finish: Zinc Electroplated, 3-7/8 IN Width, 2 IN Depth, 3-7/8 IN Height, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, For Rigid Conduit And IMC
GUJX50 Application
For wet locationsGUJX50 Includes
Malleable Iron Jar-Style Overlapping Thread Cover and (4) Side External Tapered NPT HubsGUJX50 Item Features
- Smooth hub bushings protect insulation when pulling conductors
- Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening
- No risk of conductor insulation damage from threads on base during pulling
- No risk of pinching conductors during cover installation
- Improved wiring room
- Suitable for wet locations in upright position only
GUJX50 Standards
ARRA Compliant|CEC Class I Division 1 and 2 Groups B, C, D, Class I Zone 1 and 2 Groups IIA, IIB, Class II Division 1 and 2 Groups E, F, G, Class III|CSA 020945/025875/C22.2 No. 30|NEC Certified|NEMA 3/4|UL 1203/886/E-85310SKU #2295144Part Number #GUJX50UNSPSC39121308UPC00783126247879
