Part Number # IBC100L4AC
SKU # 2274257
Image Disclaimers Message
IBC100L4AC

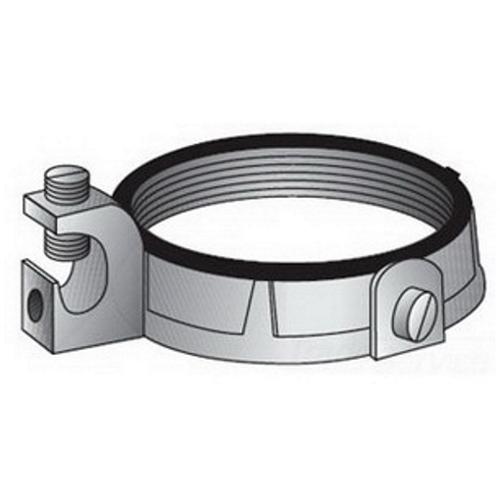

Appleton IBC100L4AC Grounding Bushing
Part Number # IBC100L4AC
SKU # 2274257
$207.75 / 25Each
Typical price:$257.00 / Each
Appleton IBC100L4AC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | IBC100L4AC |
| SKU #: | 2274257 |
| AC Cable Size: | 14 to 4, 14 to 4 AWG |
| Dimensions: | 1-3/4 in OD x 9/16 in W |
| Finish: | Zinc Plated, Zinc/Tin Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 150, 150 deg F |
| Trade Size: | 1, 1 in |
| Type: | Type IBC-L-AC |
| Country of origin: | MX |
| Material: | Aluminum/Malleable Iron/Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121312 |
| UPC: | 00783126303025 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$207.75 / 25Each
Typical price:$257.00 / Each
Quantity:
- O-Z/Gedney Grounding Bushing, Type IBC-L-AC, 14 to 4 AWG AC Cable Size, 1 in Trade, Insulated, 150 deg F, Aluminum/Malleable Iron/Steel, Zinc/Tin Plated, 1-3/4 in OD x 9/16 in W Dimensions
IBC100L4AC Application
Rigid/IMC Conduit ApplicationsIBC100L4AC Item Features
- O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
- They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
- Insulating liner material is UL V-0 rated (self-extinguishing)
- The plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
- Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Setscrew provided with each fitting locks bushing in any desired position
- UL listed for use with copper or aluminum grounding conductors
- Lugs not sold separately
- Zinc-plated clamping screw and set screws, Tin-plated lug finish
IBC100L4AC Standards
ARRA Compliant|CSA C22.2 No. 41 File No. 009795|Federal Specification W-F-408E|NEMA FB-1 Rated|UL 467|UL Listed File No. E24264SKU #2274257Part Number #IBC100L4ACUNSPSC39121312UPC00783126303025
