Part Number # IBC75
SKU # 2213038
IBC75

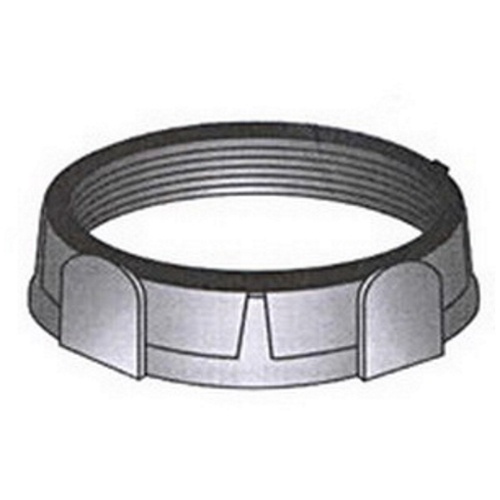

Appleton IBC75 Conduit Bushing
Part Number # IBC75
SKU # 2213038
Appleton IBC75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | IBC75 |
| SKU #: | 2213038 |
| Dimensions: | 1-7/16 in OD x 9/16 in W |
| Finish: | Zinc Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 150, 150 deg F |
| Trade Size: | 3/4, 3/4 in |
| Type: | Type IBC |
| Country of origin: | MX |
| Material: | Malleable Iron/Thermoplastic |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121312 |
| UPC: | 00783126301205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton IBC75 Conduit Bushing
Brand: Appleton
Part Number: IBC75
O-Z/Gedney Conduit Bushing, Type IBC, 3/4 in Trade, Insulated, 150 deg F, Malleable Iron/Thermoplastic, Zinc Plated, 1-7/16 in OD x 9/16 in W Dimensions
Additional Description: APLE-IBC75 3/4 IN INSUL THD BSHG
Catalog Description: OZ-Gedney Type IBC Insulated Bushing, Size: 3/4 IN, Malleable Iron Body, Thermoplastic Insulator, Finish: Zinc Plated, Connection: Threaded NPS, 150 DEG C, 1-7/16 IN Outside Diameter, 9/16 IN Width, Third Party Certification: UL File Number E-11853
IBC75 Application
Rigid/IMC Conduit ApplicationsIBC75 Item Features
- These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit
- Insulating liner material is UL V-0 rated (self-extinguishing)
- Plastic insulator is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
- Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
IBC75 Standards
ARRA Compliant|CSA C22.2 No. 18 File No. 009795|Federal Specification W-F-408E|NEMA FB-1 Rated|UL 514B|UL Listed File No. E11853SKU #2213038Part Number #IBC75UNSPSC39121312UPC00783126301205
Image provided may only be a representation of final product and may include optional equipment
