Brand: Appleton
IBC75LS4AC

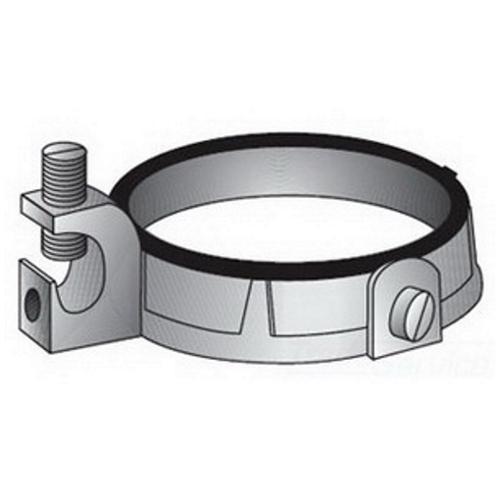

Appleton IBC75LS4AC Grounding Bushing
Part Number # IBC75LS4AC
SKU # 2382370
$448.00 / 50Each
Typical price:$554.00 / Each
Appleton IBC75LS4AC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | IBC75LS4AC |
| SKU #: | 2382370 |
| AC Cable Size: | 14 to 4 AWG |
| Dimensions: | 1-7/16 in OD x 1/2 in W |
| Finish: | Zinc/Tin Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 150 deg F |
| Trade Size: | 3/4 in |
| Type: | Type IBC-LS-AC |
| Country of origin: | MX |
| Material: | Aluminum/Malleable Iron/Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121312 |
| UPC: | 00783126303711 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$448.00 / 50Each
Typical price:$554.00 / Each
Quantity:
- O-Z/Gedney Grounding Bushing, Type IBC-LS-AC, 14 to 4 AWG AC Cable Size, 3/4 in Trade, Insulated, 150 deg F, Threaded Mounting, Aluminum/Malleable Iron/Steel, Zinc/Tin Plated, 1-7/16 in OD x 1/2 in W Dimensions
IBC75LS4AC Application
Rigid/IMC Conduit ApplicationsIBC75LS4AC Item Features
- O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
- They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
- Insulating liner material is UL V-0 rated (self-extinguishing)
- The plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
- Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Setscrew provided with each fitting locks bushing in any desired position
- UL listed for use with copper or aluminum grounding conductors
- Lugs not sold separately
- Zinc-plated clamping screw and set screws, Tin-plated lug finish
IBC75LS4AC Standards
ARRA Compliant|CSA C22.2 No. 41 File No. 009795|Federal Specification W-F-408E|NEMA FB-1 Rated|UL 467|UL Listed File No. E24264SKU #2382370Part Number #IBC75LS4ACUNSPSC39121312UPC00783126303711
