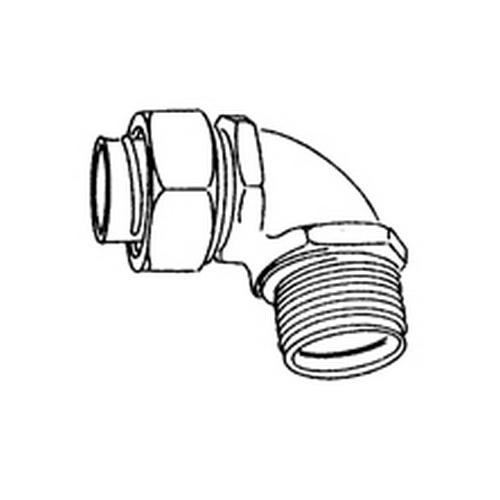

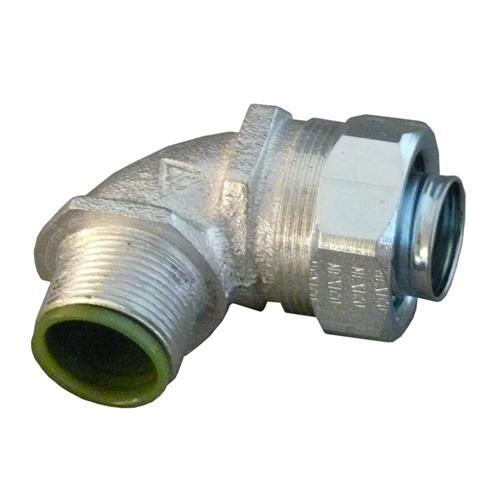

Appleton IS0905020STB Conduit Connector
Part Number # IS0905020STB
SKU # 2310305

IS0905020STB
Appleton IS0905020STB Conduit Connector
Part Number # IS0905020STB
SKU # 2310305
Appleton IS0905020STB Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | IS0905020STB |
| SKU #: | 2310305 |
| Dimensions: | 2.31 in W |
| Series: | ISO |
| UNSPSC: | 39121420 |
| UPC: | 00781381620543 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton IS0905020STB Conduit Connector
Brand: Appleton
Part Number: IS0905020STB
Appleton Conduit Connector, Series: ISO, 1/2 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.31 in W
Additional Description: APLE-IS0905020STB (D) 1/2 IN 90DEG LFMC CONN ISO THD
Catalog Description: ISO Metric Thread 90 DEG Liquidtight Connector, Size: 1/2 IN, Connection: M20 Threaded X Compression, Material: Malleable Iron, Insulation: Green Nylon Insulator, Thread Length: 0.63 IN, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, 65178, British Standard BS3643 Part 2, For Liquidtight Flexible Metal Conduit
IS0905020STB Application
Wet LocationsIS0905020STB Item Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Insulated throat protects against wire damage
- Compact design with small turning radius
- Chromate/epoxy powder coated/zinc electroplated finish
IS0905020STB Standards
UL 514B E14814|CSA 065178 C22.2 No. 18.3|British Standard BS3643 Part 2SKU #2310305Part Number #IS0905020STBUNSPSC39121420UPC00781381620543
Image provided may only be a representation of final product and may include optional equipment
