Part Number # JBES3737201M
SKU # 2363681
Image Disclaimers Message
JBES3737201M

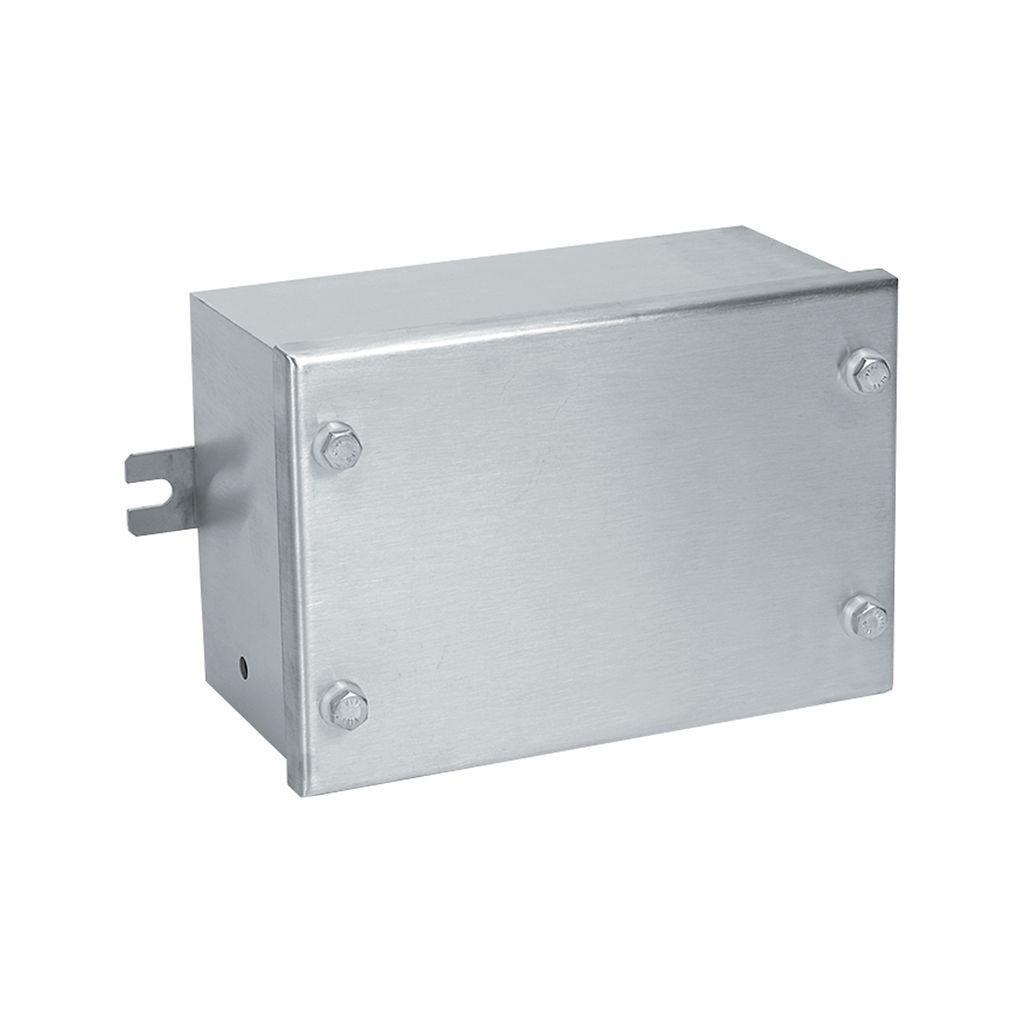

Appleton JBES3737201M Electrical Junction Box
Part Number # JBES3737201M
SKU # 2363681
$3148.25 / Each
Appleton JBES3737201M Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | JBES3737201M |
| SKU #: | 2363681 |
| Finish: | Natural Brushed |
| Series: | JBES |
| Temperature Rating (Degrees F): | -40 to 55 deg C |
| Depth: | 8 in |
| Height: | 15 in |
| Material: | 316L Stainless Steel |
| Width: | 15 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121332 |
| UPC: | 00078138129915 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3148.25 / Each
Quantity:
Appleton JBES3737201M Electrical Junction Box
Brand: Appleton
Part Number: JBES3737201M
Additional Description: APLE-JBES3737201M (N) ATX EXE JUNC BOX 370X370X200 NON-CANCELABLE, NON-RETURNABLE
JBES3737201M Application
Ideal for indoor and outdoor use in wet or corrosive atmospheres , Designed for Zones 1 or 2 areas, where flammable gases or vapors are present either continuously, often or accidentally such as petroleum and chemical facilities, refineries and other industrial process facilities , Designed for use in Zones 21 or 22 areas where flammables dusts (conductive and non conductive) are present either continuously, often or accidentally such as food processing facilities, dairy facilities, brewing facilities, pharmaceutical facilities and other commercial facilities , designed for low voltage electrical and instrumentation connections in hazardous areasJBES3737201M Item Features
- Control units, switches, breakers, transformers, meters, etc
- Refer to catalog pages to define permitted number of cable entries, number if terminal blocks, and maximum current of terminals for selected junction boxes
- Provided with feed-thru earth grounding stud and poured-in-place polyurethane door gasket
- Hinges standard on all sizes above 370.0 mm x 260.0 mm (14.57 in x 10.24 in). Reversible door, opens 210 deg, from any location top, bottom, left or right, by means of removable hinges that can be installed in any position
- Reversible anti-vibration mounting brackets can be mounted on the top, bottom or side positions
- Can be supplied with 1, 2, 3 or 4 neoprene sealed gland plates for ease of cable installation
- Optional removable padlocking device
JBES3737201M Standards
ATEX/IECEx Certified Zone 1 and 2 - 21 and 22/Ex II 2 GD /IP66/IK10SKU #2363681Part Number #JBES3737201MUNSPSC39121332UPC00078138129915
