Appleton JBR3034150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | JBR3034150 |
| SKU #: | 2465965 |
| Dimensions: | 13.07 in L x 8.25 in W x 10.28 in D |
| NEMA Rating: | NEMA 3/3R/4/4X/7BCD/9FG |
| Series: | JBR |
| Type: | Dead Front Interlocked |
| UNSPSC: | 39121406 |
| UPC: | 00781381632737 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

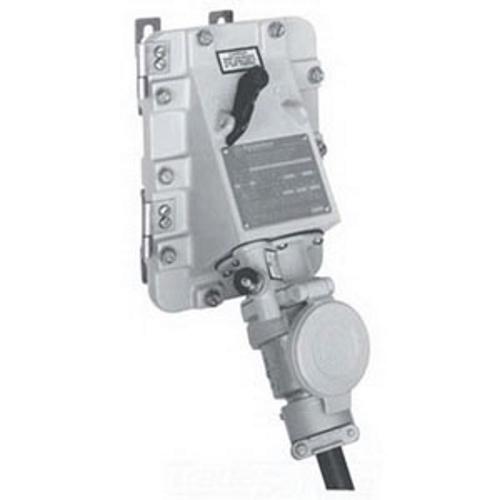

Appleton JBR3034150
Brand: Appleton
Part Number: JBR3034150
Appleton® Switched Receptacle, Dead Front Interlocked, Series: JBR, 600 VAC, 30 A, 20 hp, 50 to 400 Hz, 4 Poles, 3 Wires, NEMA 3/3R/4/4X/7BCD/9FG, 1-1/2 in Hub, Aluminium, 13.07 in L x 8.25 in W x 10.28 in D
Additional Description: APLE-JBR3034150 SWITCHED RECEPT.30A 3W4P
Catalog Description: JBR Series Switched Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 10 - 4 AWG Copper-Aluminum, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7BCD, 9FG, Mounting: Surface Mount With 1-1/2 IN Hub, Motor Horsepower: 20 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 8-1/4 IN Width X 13.07 IN Height X 10.28 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, Class III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL Listed: E10784, For ACP3034BC And CPH3034B Plugs
JBR3034150 Application
ACP3023BC and CPH3023B Plugs and Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors, Pumps, Stainless Steel Captive Cover Bolts, Mounting Feet and Hinges ApplicationsJBR3034150 Item Features
- Plug must be inserted into receptacle before the switch is in the on position
- JBR is UL listed for use with ACP Powertite and CPH plugs
- Receptacle supplied with flip cover and screw cover
- Positive polarization only plugs of the same style, number of poles and amperage rating may be used with these receptacles
- Terminal block provided in mounting box for ease of wiring, factory wired between the receptacle and terminal block
- Style 2-shell and extra pole grounding
- Receptacles may be locked in the off position
- Mounting box provided 1-1/2 in vertical feed thru conduit openings, reducer bushings provided for 1-1/4 in conduit opening, all conduit openings have NPT threads
- O-rings gasket provided between the mounting box and receptacle cover
- Internal switch provides safe and quick disconnect means, no need for separate disconnect switch
- 3-phase, surface mounting
- 10 to 4 AWG copper/aluminum wire
- Epoxy powder coated finish
- Made of copper free aluminum
- ACP3023BC Powertite mating plug
- CPH3034B complete plug
JBR3034150 Standards
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784SKU #2465965Part Number #JBR3034150UNSPSC39121406UPC00781381632737
Image provided may only be a representation of final product and may include optional equipment
