Part Number # JBX100L
SKU # 2439028
Image Disclaimers Message
JBX100L

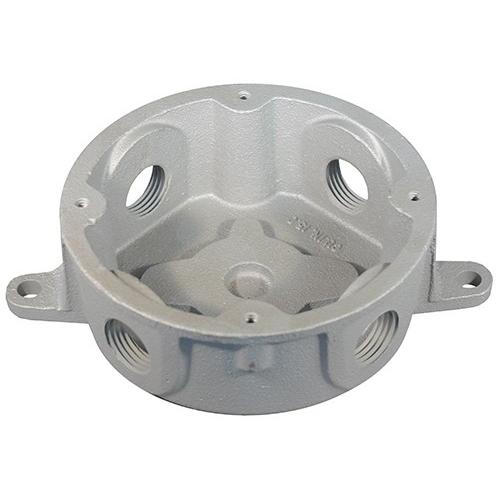

Appleton JBX100L
Part Number # JBX100L
SKU # 2439028
$40.15 / Each
Typical price:$60.67 / Each
Appleton JBX100L Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | JBX100L |
| SKU #: | 2439028 |
| Capacity: | 15.5 cu-in |
| Dimensions: | 6.13 in H x 1.63 in W |
| Finish: | Triple Coated |
| Hub Size: | 1 in |
| Number of Gangs: | 4 |
| Series: | JB Series |
| Suitable For Use With: | Threaded Rigid Metal Conduit and IMC |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Lug |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121308 |
| UPC: | 00781381465557 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$40.15 / Each
Typical price:$60.67 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Box, Series: JB Series, 1 in Hub, 4 Gangs, 15.5 cu-in Capacity, For Use With: Threaded Rigid Metal Conduit and IMC, Lug Mounting, Malleable Iron, Gray, Triple Coated Finish, 6.13 in H x 1.63 in W Dimensions
JBX100L Application
To serve as pulling fittings and provides openings for splicingJBX100L Item Features
- Smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Roomy interiors provide more wiring space
- Furnished with four tapped holes and two close up plugs
- Boss in rear of box allows for fifth entry, factory or field entries, 1/2 in or 3/4 in
- Suitable for exposed or concealed installations
- Malleable iron boxes offer high tensile strength, ductility, corrosion resistant and impact and shock resistance
- Cushion fixture hangers are enclosed and gasketed
JBX100L Standards
UL 514A , UL File Number E2527, NEMA FB-1SKU #2439028Part Number #JBX100LUNSPSC39121308UPC00781381465557
