Appleton KPB70LMT
Part Number # KPB70LMT
SKU # 2469778
KPB70LMT
Appleton KPB70LMT
Part Number # KPB70LMT
SKU # 2469778
Appleton KPB70LMT Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | KPB70LMT |
| SKU #: | 2469778 |
| Amperage Rating: | 0.9/0.5/0.44/0.35 A Starting/0.82/0.48/0.41/0.36 A Operating |
| Finish: | Epoxy Powder Coated |
| Lamp Type: | High Pressure Sodium |
| Lamp Wattage: | 70 W |
| Series: | KP Series |
| Suitable For Use With: | Glass Globe |
| Temperature Rating (Degrees F): | 65 deg C |
| Type: | HPF |
| Wattage: | 94 W |
| Country of origin: | MX |
| Height: | 5.87 in |
| Length: | 16.96 in |
| Material: | Cast Copper Free Aluminum |
| Mounting type: | Hood |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39111524 |
| UPC: | 00781381548526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton KPB70LMT
Brand: Appleton
Part Number: KPB70LMT
Appleton® Mercmaster™ III 250 Ballast Body, HPF, Series: KP Series, Mogul Base High Pressure Sodium Lamp, 70 W Lamp, 94 W Wattage, 120/208/240/277 VAC, 0.9/0.5/0.44/0.35 A Starting, 0.82/0.48/0.41/0.36 A Operating, 65 deg C, Hood Mounting, For Use With: Glass Globe, 16.96 in Length, 5.87 in Height, Cast Copper Free Aluminum, Epoxy Powder Coated, Gray
Additional Description: APLE-KPB70LMT 70 W HPS BALLAST ASY
Catalog Description: Mercmaster III 250 KP Series Ballast Body, Lamp Type: 70 WTT 6400 LM Mogul High Pressure Sodium, Lamp Wattage: 70 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Copperfree Cast Aluminum (Less Than 4/10 Of 1 PCT) M
KPB70LMT Application
Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas and Marine ApplicationsKPB70LMT Item Features
- The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations
- Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Body gaskets and globe gaskets are high temperature silicone rubber
- Capacitors are non-PCB type, thermally isolated from ballast
- Mogul base porcelain socket with nickel plated contacts has 200 deg C welded leads, prewired to the ballast to ensure trouble free operation in high ambient temperatures
- All Mercmaster III mounting hoods have provision for easy field installation
KPB70LMT Standards
CSA 025428|CSA C22.2 File No.9, C22.2 File No.137|CAN|CSA E60079-0, E60079-15|UL Standard ANSI|UL 844, 1598, 60079-0, 60079-15|UL Listed for Class I, Div 2, Groups A, B, C, D|Class I, Zone 2, AEx nA nR IIC (Z2)|Class I, Zone 2, AEx nR IIC (ZB)|Class II, Div 1 and 2, Groups E, F, G|Class IIISKU #2469778Part Number #KPB70LMTUNSPSC39111524UPC00781381548526

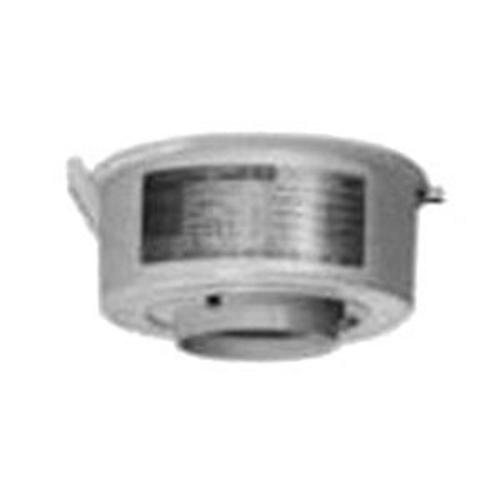

Image provided may only be a representation of final product and may include optional equipment
