Part Number # LAB23W
SKU # 2340025

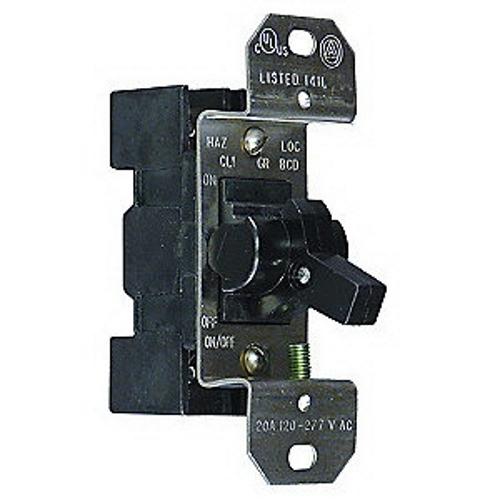

Image provided may only be a representation of
final product and may include optional equipment
Appleton LAB23W Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LAB23W |
| SKU #: | 2340025 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.63 in H x 3 in W x 1.6 in D |
| Enclosure: | NEMA 7C/7D/9E/9F/9G, NEMA 7CD/9EFG |
| Type: | 3-Way Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122211 |
| UPC: | 00781381925815 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LAB23W Tumbler Switch
Brand: Appleton
Part Number: LAB23W
Appleton Tumbler Switch, 3-Way Explosionproof, 120 to 277 VAC, 20 A, 1 to 2 hp Power, Toggle Actuator, NEMA 7C/7D/9E/9F/9G Enclosure, Malleable Iron, 4.63 in H x 3 in W x 1.6 in D
Additional Description: APLE-LAB23W TOGGLE SWITCH ASSY 3-WAY
Catalog Description: 3-Way Toggle Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Action: Toggle, Enclosure: NEMA 7CD, 9EFG, Material: Malleable Iron, Height: 4.63 IN, Width: 3 IN, Depth: 1.6 IN, Standard: UL 894, UL 1203, E10523, E817
LAB23W Application
Classified Areas Where Ignitable Vapors, Gases or Highly Combustible Dusts are Present, Installed in Chemical Plants, Petrochemical Plants, Refineries and Other Process Industries ApplicationsLAB23W Item Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch
- Tumbler switch devices are approved for installation without additional external sealing fittings
- Sealing chamber has prewired factory sealed pigtail leads to switch
- Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction
- Threaded stainless steel operating handle provides positive corrosion resistant operation
- Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of light
LAB23W Standards
Class I, Div 1 and 2, Groups C, D Class II, Div 1 and 2, Groups E, F, G Class III|UL 894|UL 1203/E10523/E81751SKU #2340025Part Number #LAB23WUNSPSC39122211UPC00781381925815
