Part Number # LB400DCGSS
SKU # 2461635
LB400DCGSS
Appleton LB400DCGSS
Part Number # LB400DCGSS
SKU # 2461635
Appleton LB400DCGSS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LB400DCGSS |
| SKU #: | 2461635 |
| Capacity: | 308 cu-in |
| Dimensions: | 13.85 in L x 4.33 in W x 7.48 in H |
| Type: | Type LB Multi-Hub |
| UNSPSC: | 39131708 |
| UPC: | 00068785500160 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LB400DCGSS
Brand: Appleton
Part Number: LB400DCGSS
Appleton NEER Conduit Outlet Body, Type LB Multi-Hub, 2-1/2 in Hub, 2 Hubs, 308 cu-in Capacity, Setscrew Connection, Die-Cast Aluminum, Epoxy Powder Coated, 13.85 in L x 4.33 in W x 7.48 in H Dimensions
Additional Description: APLE-LB400DCGSS 4 IN ALUM SSCR LB BDY CVR GSKT
Catalog Description: EMT Conduit Bodies, Type: Multi-Hub, Material: conduit body-diecast, copperfree aluminum/epoxy powder coat, cover-stamped aluminum, natural finish, gasket-neoprene, UL Standard: 514A, Trade Size: 4", Length,: 15.46", Width: 5.43", Height: 7
LB400DCGSS Application
For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applicationsLB400DCGSS Item Features
- Lightweight aluminum facilitates shipping, handling and installing
- (3) 400 kcmil conductors
LB400DCGSS Standards
CSA C22.2 No. 18.3/208044|NEMA FB-1 Rated|UL 514A File No. E53330SKU #2461635Part Number #LB400DCGSSUNSPSC39131708UPC00068785500160

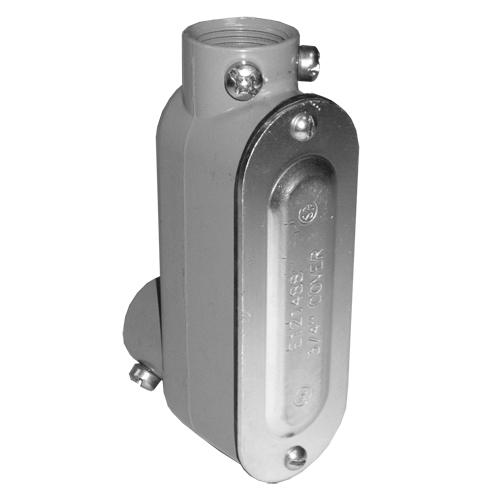

Image provided may only be a representation of final product and may include optional equipment
