Part Number # LB6X100MA
SKU # 2327443
LB6X100MA
Appleton LB6X100MA Conduit Body
Part Number # LB6X100MA
SKU # 2327443
Appleton LB6X100MA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LB6X100MA |
| SKU #: | 2327443 |
| Body Type: | Type LB |
| Capacity: | 31, 31 cu-in |
| Dimensions: | 8.94 in L x 2.38 in W x 3.63 in H |
| Finish: | Epoxy Powder Coated |
| Form: | Mogul |
| Hub Size: | 1, 1 in |
| Type: | Explosionproof |
| Connection type: | Tapered/Threaded |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126020830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LB6X100MA Conduit Body
Brand: Appleton
Part Number: LB6X100MA
O-Z/Gedney Conduit Body, Explosionproof, Type LB Body Type, 1 in Hub, 2 Hubs, 31 cu-in, Mogul, Tapered/Threaded, Copper-Free Aluminum, Epoxy Powder Coated, 8.94 in L x 2.38 in W x 3.63 in H
Additional Description: APLE-LB6X100MA 1 IN LB MOGUL COND BDY ALUM
Catalog Description: Rigid Conduit Body, Access Opening Back, Configuration LB, Cover Type Epoxy Powder Coated Copper Free Aluminum, Hub Location 90 Deg, Number of Hubs 2, Hub Size 1 Inch, Size 8.94 Inch L x 2.38 Inch W x 3.63 Inch H, Installation Threaded, Material Epoxy Powder Coated Copper Free Aluminum Body, Neoprene Gasket, Approval UL 514A, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10, Capacity 31 Cu Inch
LB6X100MA Application
For pulling fittings, make bends in conduit system; provide openings for splicing, connect and change direction of conduit runs, allow connections for straight, branch runs and 90 deg bends, permit access to conductors for maintenance of rigid conduit and IMC, wet locationLB6X100MA Item Features
- Meets NEC section 314.28 rule for 6X or 8X the conduit trade size between hubs
- Mogul design for large and heavy conductors
- Raintight when used with gasketed covers
- Smooth integral hub bushings protect conductor insulation
- Access opening back
- With captive stainless steel screws and built-in cable pulling rollers
LB6X100MA Standards
UL 514A|UL File No. E18095|CSA C22.2 File No. 18|CSA File No. 9795|Federal Specification A-A-50563|Class 1, Division 2 Per NEC section 501-4(B)|NEC section 314.28|NEMA FB-1/FB-2.1SKU #2327443Part Number #LB6X100MAUNSPSC39131708UPC00783126020830

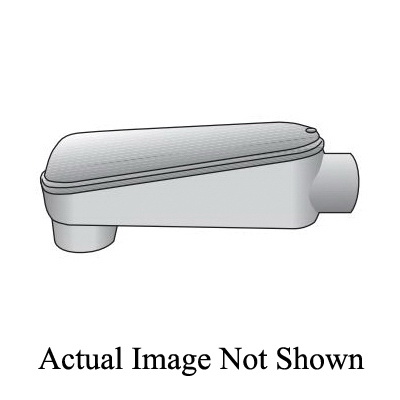

Image provided may only be a representation of final product and may include optional equipment
