Part Number # LB75
SKU # 28784

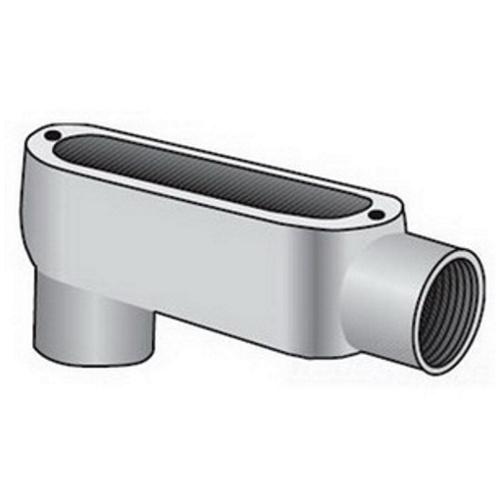

Image provided may only be a representation of
final product and may include optional equipment
LB75
Appleton LB75 Conduit Outlet Body
Part Number # LB75
SKU # 28784
Appleton LB75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LB75 |
| SKU #: | 28784 |
| Capacity: | 7.3, 7.3 cu-in |
| Dimensions: | 5-3/8 in L x 1-7/8 in W |
| Enclosure: | NEMA FB-1 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Type: | Type LB |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126327755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LB75 Conduit Outlet Body
Brand: Appleton
Part Number: LB75
O-Z/Gedney Conduit Outlet Body, Type LB, 2 Hubs, 7.3 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 5-3/8 in L x 1-7/8 in W
Additional Description: APLE-LB75 3/4 IN LB IRON COND BDY
Catalog Description: OZ-Gedney Spec 5 Type LB Conduit Body, 3/4 IN Hub, Length: 5-3/8 IN, 1-7/8 IN Width, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (6 AWG) Conductors, 7 CU-IN Volume, Third Party Certification: UL File
LB75 Application
Rigid/IMC Conduit ApplicationsLB75 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
LB75 Standards
ARRA Compliant|RoHS Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #28784Part Number #LB75UNSPSC39131708UPC00783126327755
