Part Number # LB75D
SKU # 2394237
LB75D
Appleton LB75D Neer Conduit Outlet Body
Part Number # LB75D
SKU # 2394237
Appleton LB75D Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LB75D |
| SKU #: | 2394237 |
| Capacity: | 7.3 cu-in |
| Dimensions: | 5.17 in L x 1.53 in W x 2.56 in H |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 3/4 in |
| Type: | Type LB |
| Connection type: | Thread |
| Country of origin: | IN |
| Material: | Die-Cast Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00687855360758 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

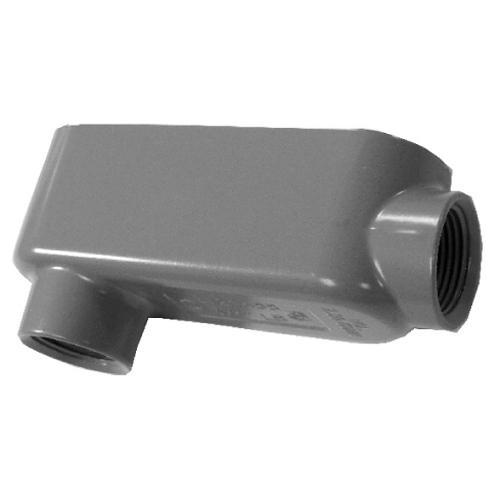

Appleton LB75D Neer Conduit Outlet Body
Brand: Appleton
Part Number: LB75D
Appleton NEER Conduit Outlet Body, Type LB, 3/4 in Hub, 2 Hubs, 7.3 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 5.17 in L x 1.53 in W x 2.56 in H Dimensions
Additional Description: APLE-LB75D 3/4 IN THD ALUM LB COND BDY
Catalog Description: EMT Conduit Bodies, Type:Threaded Conduit, Material: Diecast Aluminum/ Epoxy Powder Coat, UL Standard: 514A, Trade Size 3/4, Dimension: Length 5.17 Inches, Width 1.53 Inches, Height 2.56 Inches
LB75D Application
For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applicationsLB75D Item Features
- Lightweight aluminum facilitates shipping, handling and installing
- (3) 6 AWG conductors
LB75D Standards
CSA C22.2 No. 18.3/208044|NEMA FB-1 Rated|UL 514A File No. E53330SKU #2394237Part Number #LB75DUNSPSC39131708UPC00687855360758
Image provided may only be a representation of final product and may include optional equipment
