Part Number # LBY50
SKU # 2380136
LBY50

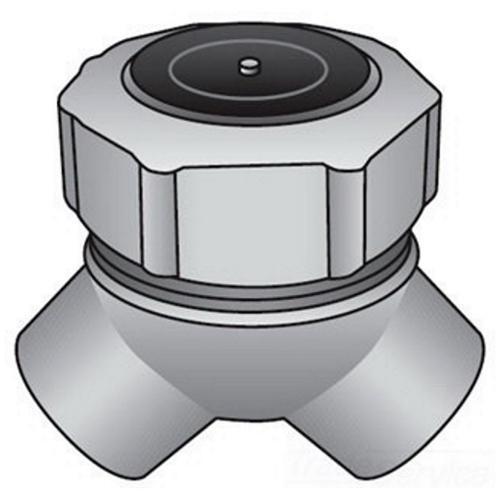

Appleton LBY50 Conduit Elbow
Part Number # LBY50
SKU # 2380136
Appleton LBY50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LBY50 |
| SKU #: | 2380136 |
| Angle: | 90 deg |
| Dimensions: | 2-3/32 in L x 2-1/4 in H |
| Finish: | Electro-Plated Zinc |
| Suitable For Use With: | Threaded IMC/Rigid Conduit |
| Trade Size: | 1/2 in |
| Type: | Type LBY Explosionproof Short Capped |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00783126329001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LBY50 Conduit Elbow
Brand: Appleton
Part Number: LBY50
O-Z/Gedney Conduit Elbow, Type LBY Explosionproof Short Capped, 1/2 in Trade, 90 deg Angle, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc, 2-3/32 in L x 2-1/4 in H Dimensions
Additional Description: APLE-LBY50 1/2 IN HAZ LOC CAPPED ELB
Catalog Description: OZ-Gedney Type LBY 90 DEG Capped Conduit Short Elbow, Malleable Iron, Finish: Zinc Electroplated, Length: 2-3/32 IN, Trade Size: 1/2 IN, Connection: Tapered FNPT Hub, Third Party Certification: UL 34997, Hazardous Location: Class I, Division 1, 2,
LBY50 Application
Hazardous Location ApplicationsLBY50 Item Features
- Provides a 90 deg change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors
- Screw-on cover for ease of installation and removal
- Cover opens on an angle permitting conductors to be pulled straight through either hub
- Can make 90 deg turns in conduit where a compact turn is desired
- Female tapered threaded hubs (NPT) for rigid conduit and IMC
LBY50 Standards
UL 34997|UL 514B|UL 886|Hazardous Location: Class I Div 1, 2 Group B, C, D|Class I Zone 1, 2 Group IIA, IIB + H2|Class II Div 1, 2 Group E, F, G|Class III|CSA C22.2 No. 30 File No. 009795|NEC Articles No. 500-503/505|Military Specification Mil-F-28675SKU #2380136Part Number #LBY50UNSPSC39121311UPC00783126329001
Image provided may only be a representation of final product and may include optional equipment
