Part Number # LC75DCG
SKU # 2394799
LC75DCG
Appleton LC75DCG Neer Conduit Outlet Body
Part Number # LC75DCG
SKU # 2394799
Appleton LC75DCG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LC75DCG |
| SKU #: | 2394799 |
| Capacity: | 7.33 cu-in |
| Dimensions: | 5.94 in L x 2.68 in W x 1.88 in H |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 1 in |
| Type: | Type LC |
| Connection type: | Thread |
| Country of origin: | IN |
| Material: | Die-Cast Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00068785500060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LC75DCG Neer Conduit Outlet Body
Brand: Appleton
Part Number: LC75DCG
Appleton NEER Conduit Outlet Body, Type LC, 1 in Hub, 2 Hubs, 7.33 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 5.94 in L x 2.68 in W x 1.88 in H Dimensions
Additional Description: APLE-LC75DCG 3/4 THD ALUM LC BDY CVR GSKT
Catalog Description: EMT Conduit Bodies, Aluminum Threaded for Rigid Conduit and IMC, Material: Conduit body: diecast, copperfree aluminum/epoxy powder coat, Cover: stamped aluminum, natural fi nish, Gasket: neoprene, UL Standard: 514A, Trade Size: 3/4", Len
LC75DCG Application
For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applicationsLC75DCG Item Features
- Lightweight aluminum facilitates shipping, handling and installing
- (3) 6 AWG conductors
LC75DCG Standards
CSA C22.2 No. 18.3/208044|NEMA FB-1 Rated|UL 514A File No. E53330SKU #2394799Part Number #LC75DCGUNSPSC39131708UPC00068785500060

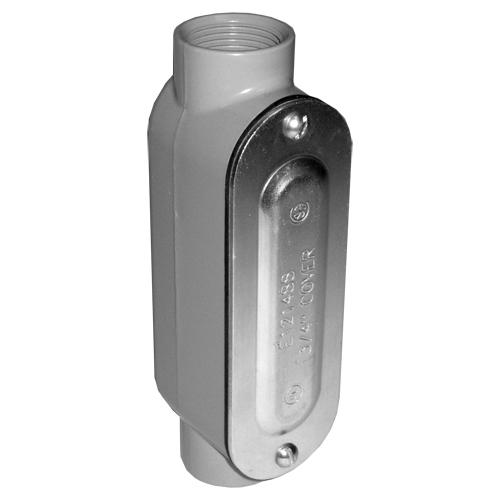

Image provided may only be a representation of final product and may include optional equipment
