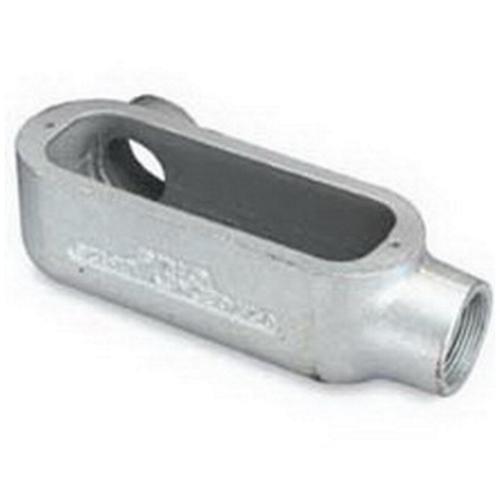

Image provided may only be a representation of
final product and may include optional equipment
LL300
Appleton LL300 Conduit Outlet Body
Part Number # LL300
SKU # 2368041
Appleton LL300 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LL300 |
| SKU #: | 2368041 |
| Capacity: | 173, 173 cu-in |
| Dimensions: | 13-3/4 in L x 4-3/4 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126379259 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LL300 Conduit Outlet Body
Brand: Appleton
Part Number: LL300
O-Z/Gedney Spec 5 Conduit Outlet Body, Type LL, 2 Hubs, 173 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 13-3/4 in L x 4-3/4 in H
Additional Description: APLE-LL300 3 IN LL IRON COND BDY
Catalog Description: OZ-Gedney Spec 5 Type LL Conduit Body, 3 IN Hub, Length: 13-3/4 IN, 4-3/4 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (4/0 AWG) Conductors, 173 CU-IN Volume, Third Party Certification: UL F
LL300 Application
Rigid/IMC Conduit ApplicationsLL300 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
LL300 Standards
UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #2368041Part Number #LL300UNSPSC39131708UPC00783126379259
