Part Number # LL75ACGA
SKU # 2273385

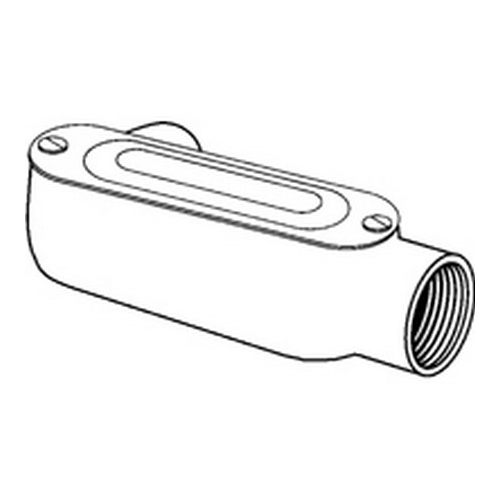

Image provided may only be a representation of
final product and may include optional equipment
LL75ACGA
Appleton LL75ACGA Conduit Outlet Body
Part Number # LL75ACGA
SKU # 2273385
Appleton LL75ACGA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LL75ACGA |
| SKU #: | 2273385 |
| Capacity: | 7, 7 cu-in |
| Dimensions: | 5.13 in L x 2.25 in W x 2.44 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Epoxy Powder Coated |
| Form: | Form 85 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Pressure Cast Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381826006 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton LL75ACGA Conduit Outlet Body
Brand: Appleton
Part Number: LL75ACGA
Appleton UNILETS Conduit Outlet Body, Type LL, 3/4 in Hub, 2 Hubs, 7 cu-in Capacity, Form 85 Form, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Pressure Cast Aluminum, Epoxy Powder Coated, 5.13 in L x 2.25 in W x 2.44 in H
Additional Description: APLE-LL75ACGA 3/4 IN LL COND BODY ASSY AL
Catalog Description: Form 85 UNILETS Type LL Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 3/4 IN, Form: 85, Length: 5.13 IN, Width: 2-1/4 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded,
LL75ACGA Application
For Rigid Steel/Aluminum, IMC and EMT ConduitLL75ACGA Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum UNILETS are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
LL75ACGA Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #2273385Part Number #LL75ACGAUNSPSC39131708UPC00781381826006
