LL75CG

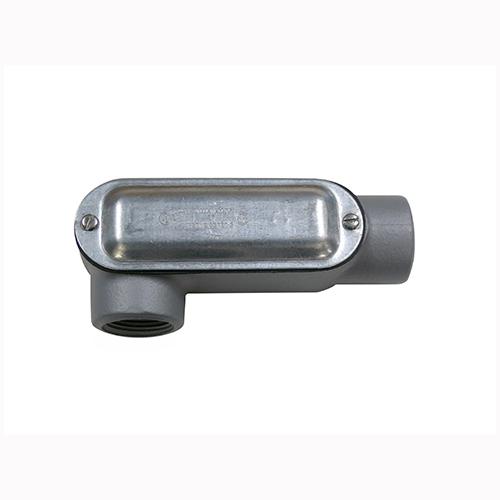

Appleton LL75CG Conduit Outlet Body
Part Number # LL75CG
SKU # 2205861
$23.77 / Each
Typical price:$29.39 / Each
Appleton LL75CG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LL75CG |
| SKU #: | 2205861 |
| Capacity: | 7.5, 7.5 cu-in |
| Dimensions: | 5.38 in L x 2.19 in W x 2.31 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126062946 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$23.77 / Each
Typical price:$29.39 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Body, Type LL, 3/4 in Hub, 2 Hubs, 7.5 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 5.38 in L x 2.19 in W x 2.31 in H
LL75CG Application
Rigid/IMC Conduit ApplicationsLL75CG Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
LL75CG Standards
ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #2205861Part Number #LL75CGUNSPSC39131708UPC00783126062946
